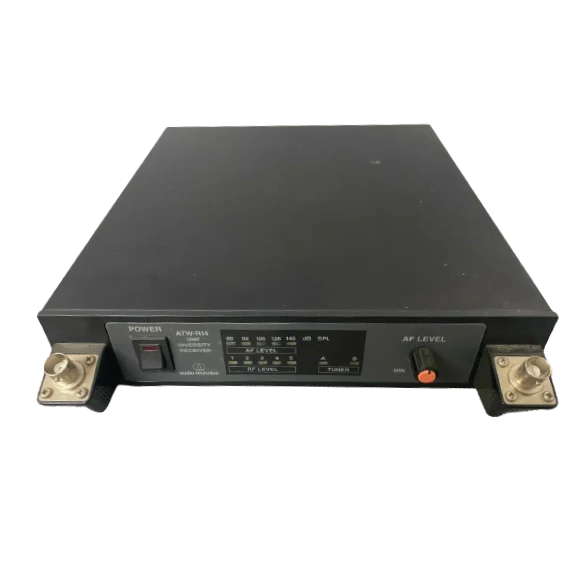

Audio-Technica ATW-R14 Digital Reference UHF Diversity Receiver 745.20Mhz w/ ATW-T52 Handheld Microphone/Transmitter - DEMO

Note : ATW-T52 is in used condition, ATW-R14 is in box.

A-T's rugged and reliable 1400 Series UHF True Diversity wireless systems include a receiver and either a body-pack or a handheld transmitter on a specific crystal-controlled frequency. The all-metal UHF receiver is equipped with detachable front-mount antennas, balanced and unbalanced outputs, ground lift, adjustable squelch, rackmount capability and True Diversity reception.

Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts.

FEATURES

• True Diversity reception with two independent RF sections for greatest reliability
• Interference-resistant UHF band operation
• Convenient detachable front-mount antennas
• Rugged metal receiver housing
• Balanced and unbalanced audio output jacks
• Ground-lift switch and adjustable squelch
• Two receivers can be mounted side-by-side in a single 19" rack space
• Power-save switches on transmitters

SPECS

• Operating Frequency: UHF band, 732 MHz to 746 MHz
• Number of Channels: Fixed channel
• Frequency Stability: +/-0.005%
• Modulation Mode: FM
• Maximum Deviation: +/-15 kHz
• Operating Range: 200' minimum
• Operating Temperature Range: 40 F (4 C) to 110 F (43 C)
• Frequency Response: 100 Hz to 15 kHz

RECEIVER SPECIFICATIONS

• Receiving System: Dual independent receivers, automatic-switching diversity reception
• Image Rejection: 45 dB minimum
• Signal-to-noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
• Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
• Sensitivity: <=20 V for 60 dB S/N (IEC-weighted)
• Audio Output: Unbalanced: 280 mV (at 1 kHz, +/-10 kHz deviation, 10k ohm load)Balanced: 160 mV (at 1 kHz, +/-10 kHz deviation, 10k ohm load)
• Output Connectors: Unbalanced: 1/4" phone jackBalanced: XLRM-type
• Power Supply: 12-18V DC, 500 mA
• Dimensions: 8.27" (210.0 mm) W x 1.93" (49.0 mm) H x 9.88" (251.0 mm) D
• Weight: 2.9 lbs (1.3 kg)
