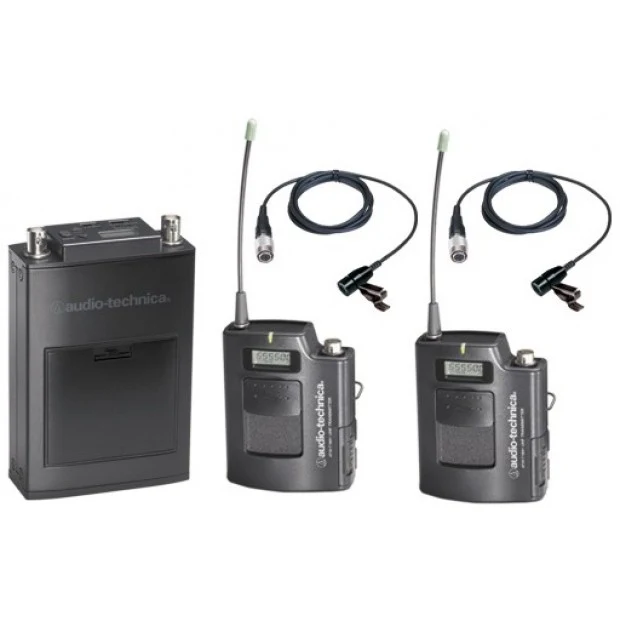

Audio-Technica ATW1821D Dual-Channel Camera-Mount UHF Wireless System - DEMO

With UHF reception (996 frequencies user-selectable in 25 kHz steps), Audio-Technica’s 1800 Series camera-mount wireless microphone systems provide extremely flexible, professional and easy-to-use portable wireless solutions. The 1800 Series is available in dual-channel and single-channel systems. For simultaneous operation of two microphones, dual-channel 1800 wireless systems include the ATW-R1820 dual receiver with two completely independent receiver channels in a single unit. Dual balanced outputs enable signals to be mixed, or independently assigned to each output. Independent audio level controls provide flexible audio mixing and monitoring possibilities. For those using a single microphone, the single-channel 1800 Series systems include the ATW-R1810 single-channel receiver. 1800 Series wireless systems come equipped with a choice of plug-on and body-pack transmitters. The ATW-T1801 UniPak® body-pack transmitters feature a professional locking 4-pin connector compatible with all Audio-Technica Wireless Essentials® microphones. The ATW-T1802 plug-on transmitters feature a locking XLR connector for adapting dynamic and condenser microphones. Both transmitters offer selectable high and low transmission modes to conserve battery life/maximize power. Additional 1800 Series features include automatic frequency scanning, Tone Lock™ squelch, back-lit LCD, soft-touch buttons, headphone monitor output with independent level control, and durable metal construction.

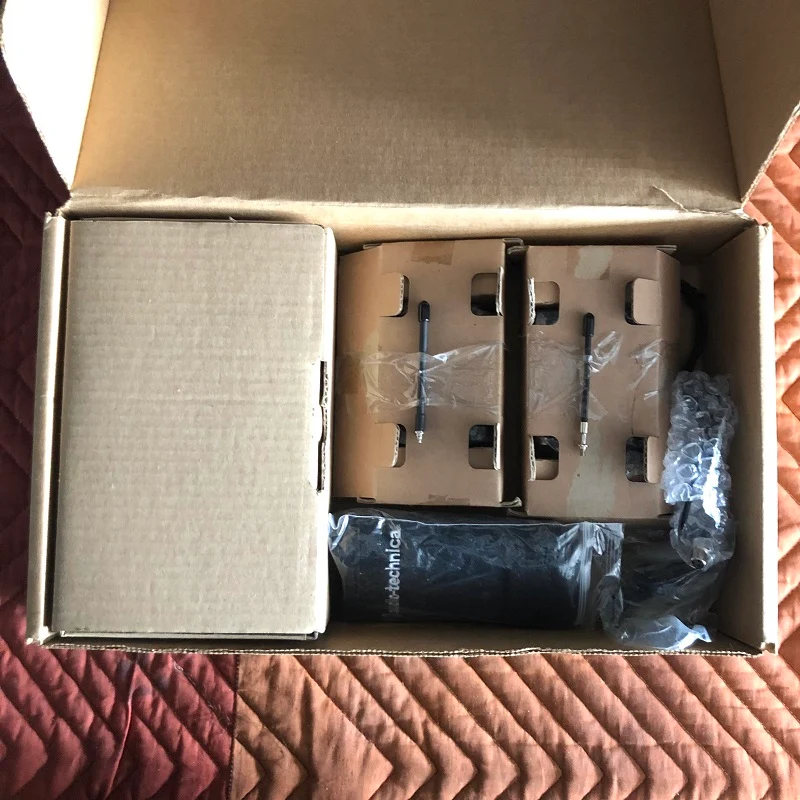

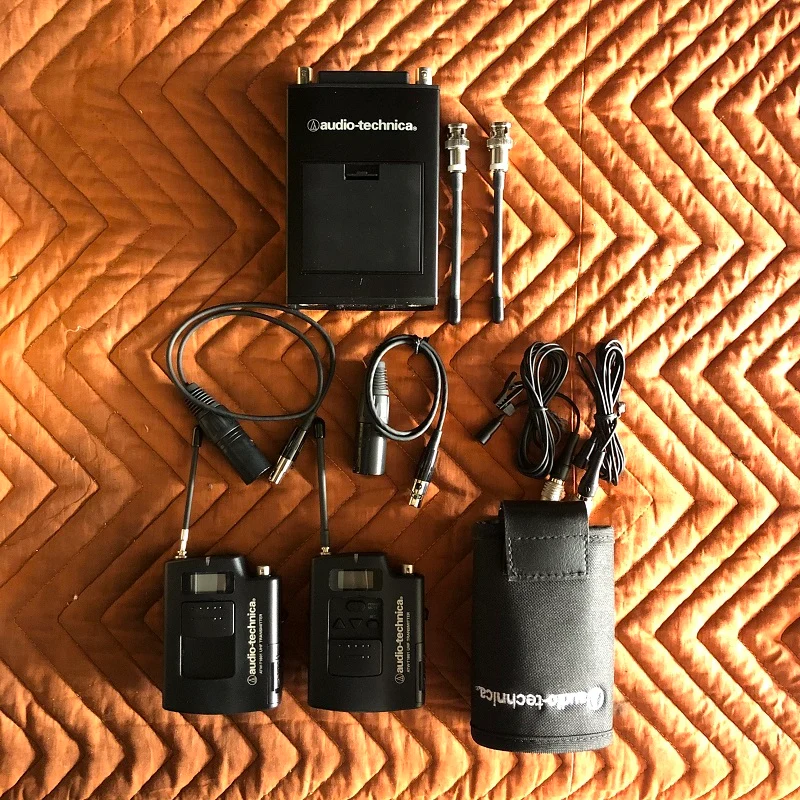

In the Box

• Audio-Technica ATW-1821 Dual Wireless Microphone System
• ATW-R1820 Dual Receiver
• 2 x ATW-T1810 Bodypack Transmitters
• 2 x Omnidirectional Lavalier Microphones
• 2 x Antennas
• Receiver Belt Pouch
• x2 Receiver Output Cables (TA3F to XLRM)

• Two completely independent receiver channels in a single unit, for simultaneous operation of two microphones (dual-channel systems)
• Compact receiver is easy to mount on a camera
• UHF reception with 996 frequencies selectable in 25 kHz steps
• Automatic frequency scanning for easy selection of open channels
• Tone Lock™ squelch system eliminates interference when transmitter is off
• Two independent balanced outputs (dual-channel systems)
• Headphone monitor output with independent level control
• Battery fuel-level indicators on transmitters and receiver
• Soft-touch controls for easy frequency selection
• True Diversity operation for resistance to multi-path interference and dropouts
• LCD frequency and battery status display with backlight
• Antenna and AF Peak LED indicators
• Dual-channel receiver can operate in single-receiver mode to extend battery life when only one audio channel is in use (dual-channel systems)
• Transmitters operate in low or high transmission modes to conserve battery life/maximize power
• Easy, user-friendly operation
• Clear, natural sound quality
• Powered by AA batteries
• System components of the 1800 Series and 3000 Series Wireless Systems can be used interchangeably

System
Type of System	Dual Camera Mount UHF
RF Carrier Frequency Range	UHF Band D: 655.500 to 680.375 MHz
Approx. Working Range	100 m (300') typical
Overall Frequency Response	70Hz to 15kHz
Signal-to-Noise Ratio	104 dB at 30 kHz deviation (A-weighted), maximum modulation 37 kHz
# Of Channels	996 total per band (25 kHz increments)
# Of Simultaneous Systems	Not Specified By Manufacturer
Receiver
Type of Receiver	Dual independent RF sections, automatic-switching diversity
Type of Outputs	3-pin Mini XLR (TA3)
Headphone Monitoring	3.5 mm TRS, signals on both Tip and Ring
Power Requirements	12V DC nominal, 500 mA
Battery Type/Approx. Life	Six 1.5V AA alkaline (not included) Dual-channel Operation: 6 hours typical Single-channel Operation: 10 hours typical
Display	LCD frequency and battery status display with back-light Antenna and AF Peak LED indicators
Mounting Options	No
Antenna Type	Dual BNC
Dimensions (WxHxD)	3.35 x 5.24 x 1.42" (85 x 133 x 36mm)
Weight	425 g (15 oz)
Transmitter
Type of Transmitter	UHF Frequency Agile Bodypack
Type of Input Connector	Hirose 4-Pin
Type of Microphone	Lavalier
Polar Pattern	Omnidirectional
Interchangeable Mic Heads	No
Battery Type/Approx. Life	Two 1.5V AA alkaline (not included)
Mute Switch	Yes
Level Control	Yes
Antenna Type	Flexible Whip
Display	LCD frequency and battery status display with back-light Antenna and AF Peak LED indicators
Dimensions (WxDxH)	2.60 x 3.43 x 0.94" (66.0 x 87 x 24mm)
Weight	80 grams (2.8 oz) (without batteries)

Packaging Info

Package Weight	3 lb
Box Dimensions (LxWxH)	15.2 x 9.2 x 3.4"
