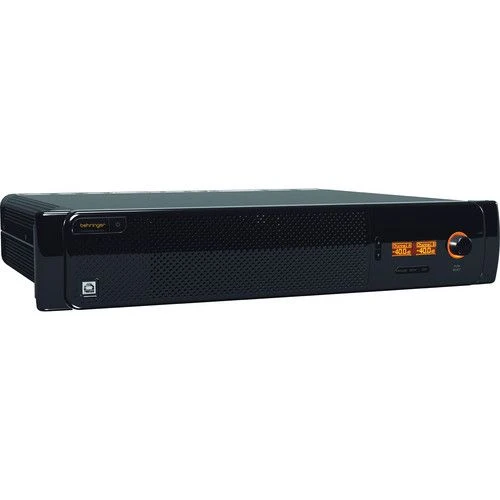

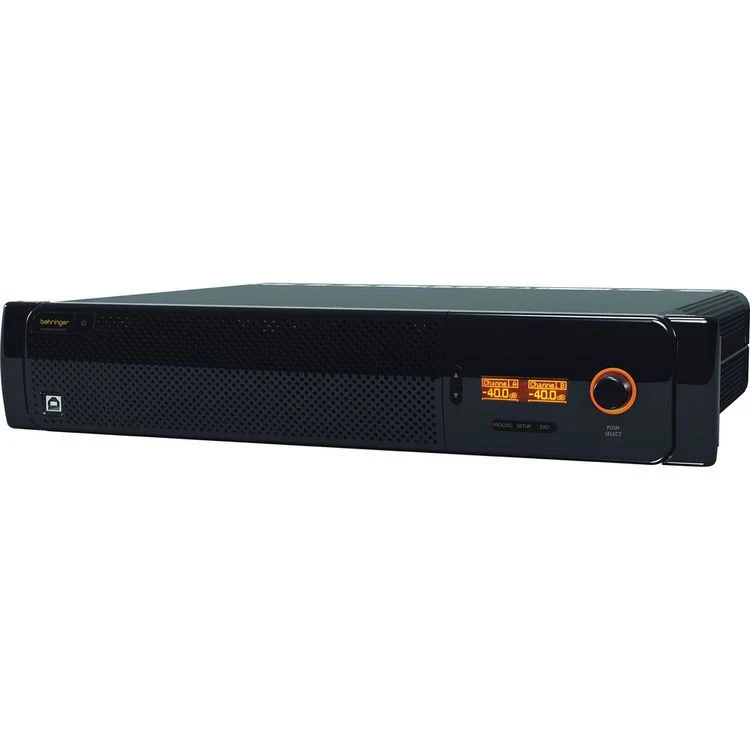

Behringer AX6220 Eurocom Low Impedance Stereo Power Amplifier OPEN BOX

Behringer AX6220 Eurocom Low Impedance Stereo Power Amplifier

The Eurocom AX6220 Low Impedance Power Amplifier from Behringer is a dual channel rack mount power amplifier that offers digital control for a variety of applications including distributed music, paging systems, and other AV uses. The 24 bit, 96 kHz convertors provide high fidelity audio for the Eurocom AX6220's digital signal processor, or DSP, which includes delay, crossover, and dynamics as well as an eight band parametric and two band dynamic EQ. Onboard DSP also includes Behringer's "Zero Attack" limiters, designed to protect connected speakers.

The AX6220 settings can be controlled and saved remotely using your PC's Ethernet connection and Behringer's free Amp Remote software (available through their website). The unit can also be directly controlled with its front panel LCD screen.

Switch-Mode Power technology provides up to 73% power efficiency to reduce power consumption Dual-channel power amplifier designed for continuous operation Two transformerless, cool-running Class-H amplifiers drive low-impedance loads down to 2 Ω The 24 bit/96 kHz DSP section features delay, crossover, EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings Front panel LCD display enables setup and adjustment without use of a PC Can be set up, controlled and monitored through standard Ethernet network or panel USB connector Two line level inputs via 3-pin Euroblock or XLR/TRS combination connectors Front panel VU metering, mute indication, system fault, over-current or overdrive indicators and illuminated master volume ring with clipping indication Limiters on all output channels with independent DC and thermal overload protection automatically protects amplifier and speakers

Power Output	480 w per channel @ 8 Ω stereo @ peak, 1% thd, 1 kHz sine wave 900 w per channel @ 4 Ω stereo @ peak, 1% thd, 1 kHz sine wave 1400 w per channel @ 2 Ω stereo @ peak, 1% thd, 1 kHz sine wave 1750 w per channel @ 8 Ω bridged @ peak, 1% thd, 1 kHz sine wave 2600 w per channel @ 4 Ω bridged @ peak, 1% thd, 1 kHz sine wave 400 w per channel @ 8 Ω stereo @ rms, 1% thd, 1 kHz sine wave 650 w per channel @ 4 Ω stereo @ rms, 1% thd, 1 kHz sine wave 1000 w per channel @ 2 Ω stereo @ rms, 1% thd, 1 kHz sine wave 1300 w per channel @ 8 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave 2000 w per channel @ 4 Ω bridged mono @ rms, 1% thd, 1 kHz sine wave

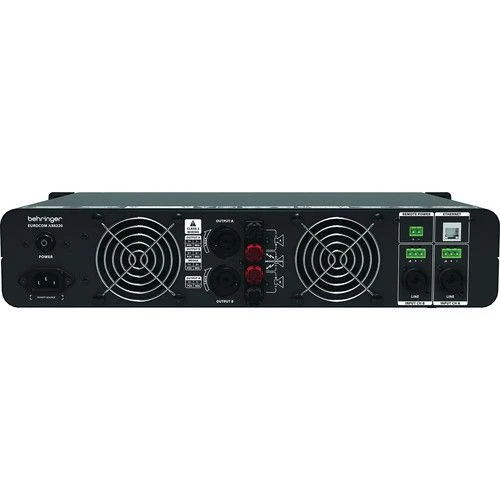

Inputs	2x 3-pin Euroblock 2x XLR/TRS combo
Outputs	2x Speakon 4x binding post
Gain	34 dB @ 8 Ω
Minimum Load Impedance	2 Ω
Frequency Response	20 Hz - 20 kHz, -1 dB @ 1 W, 1 kHz dBr into 8 Ω
Total Harmonic Distortion (THD)	< 0.25% @ 1 W, 1 kHz dBr into 8 Ω
Signal to Noise Ratio	87 dB @ input 2 dBu 93 dB @ +22 dBu
Damping Factor	> 220 @ 8 Ω
Crosstalk	> -70 dB @ rated power, 1 kHz
Indicators	Power indicator LED ring illumination (yellow) Overload/Protection LED ring(red) LCD display VU meters System fault, overcurrent/overdrive indicators
Operating Temperature	14° to 104° F (-10° to 40° C)
Cooling Method	Automatic variable speed fan rear to front airflow
PC Control	Type B USB on front or IEEE 802.3 Ethernet network connector on back panel
Display	LCD 128 x 32, amber backlit
Delay	0 - 300 ms
Crossover	3 filter types per channel: (Butterworth, Bessel, Linkwitz-Riley) up to 48 dB/octave
Digital Equalizer	8-band parametric, 2-band dynamic (per channel)
Dynamics	Digital zero attack limiter (per channel)
Presets	20 total presets, 19 user definable
Power Consumption	7 a @ 220-240 v~50/60 Hz 12 a @ 120 v~60 Hz 14 a @ 100 v~50/60 Hz
Power Efficiency	69%
AC Power Source	100~120 v ac 50/60 Hz 220~240 v ac 50/60 Hz
Rack Size	1 unit
Dimensions	3.7 x 17.0 x 16.0" (95.0 x 432.0 x 406.0 mm)
Weight	21.4 lb (9.7 kg)
