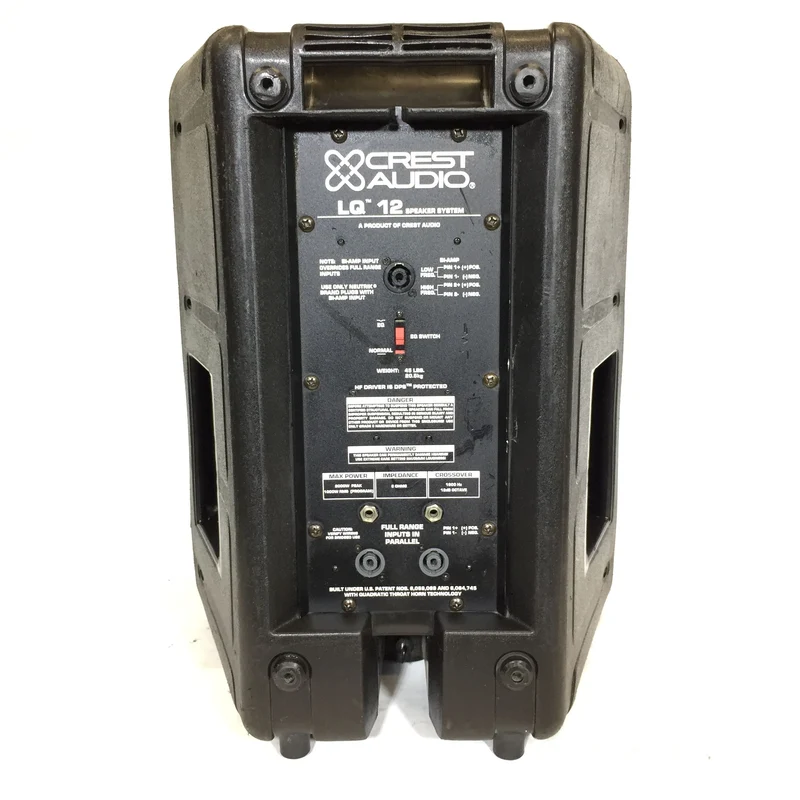

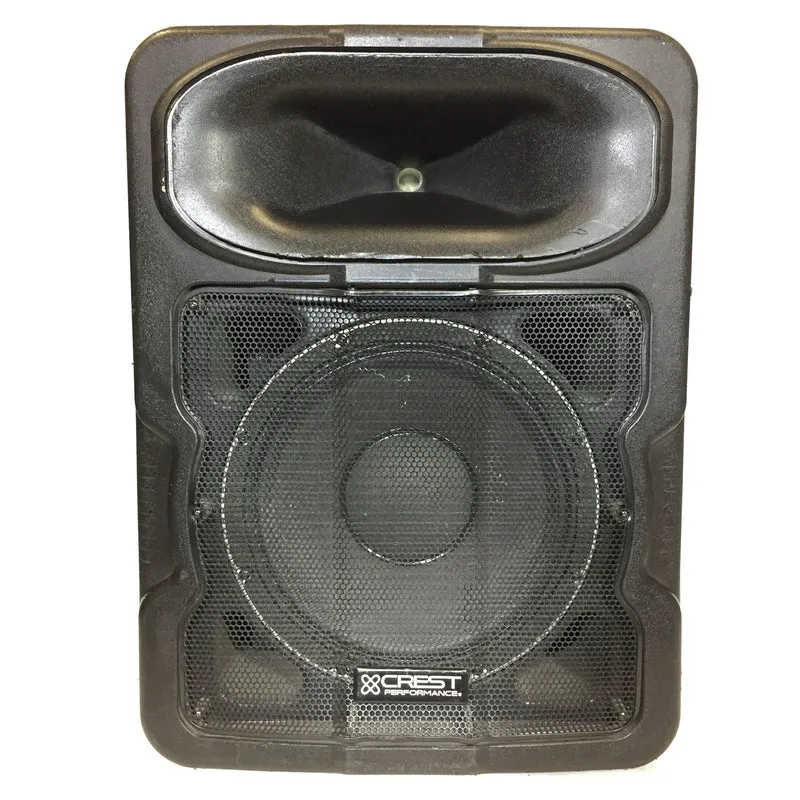

Crest Audio LQ12 Two-Way Passive Speaker 2000W #2569 - USED

Features

• Quadratic Throat Geometry horn
• 1000 W program, 2000 W peak
• 12" cast frame 4" VC woofer
• Crest HF™2 two-inch titanium compression driver
• DPS™ (Dynamic Protection System) tweeter protection
• Crossover EQ switch
• High power crossover components
• Top and bottom flying point inserts
• Multiple handles and 1-3/8" stand mount

frequency response	High freq 0.875 in. exit/51 mm voice coil HF™2 compression driver on a CD horn
usable low frequency limit (-10 dB point)	54 Hz
power handling	Full-range 500 W continuous 1,000 W program
	High freq 60 W continuous 120 W program
sound pressure level	Full range 99.0 dB SPL, (2.83 V input)
	High freq 110.0 dB SPL, (2.83 V input)
maximum sound pressure level (1 meter)	Full range 125.0 dB SPL continuous 134.0 dB SPL peak
	High freq 127.0 dB SPL continuous 133.0 dB SPL peak
radiation angle measured	90° horizontal X 45° vertical
transducer complement	Low freq 1x 12" woofer, vented
	High freq 0.875 in. exit/51 mm voice coil HF™2 compression driver on a CD horn
box tuning frequency	Fbox 68 Hz
crossover frequency (internal passive)	Low freq High freq 1800 Hz
recommended minimum active crossover	Low freq High freq 1800 Hz at 12 dB/octave
time offset	Low freq 0.00 ms High freq 0.00 ms horn spatially aligned
impedance (Z)	Full range nominal 8.0 Ω minimum 5.8 Ω
	High freq nominal 8.0 Ω minimum 5.4 Ω

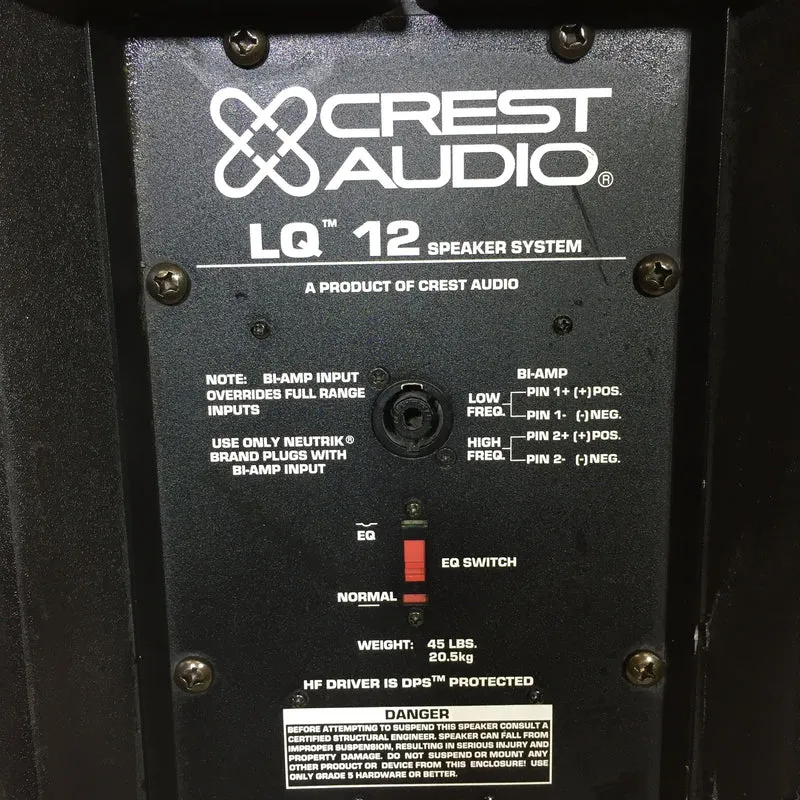

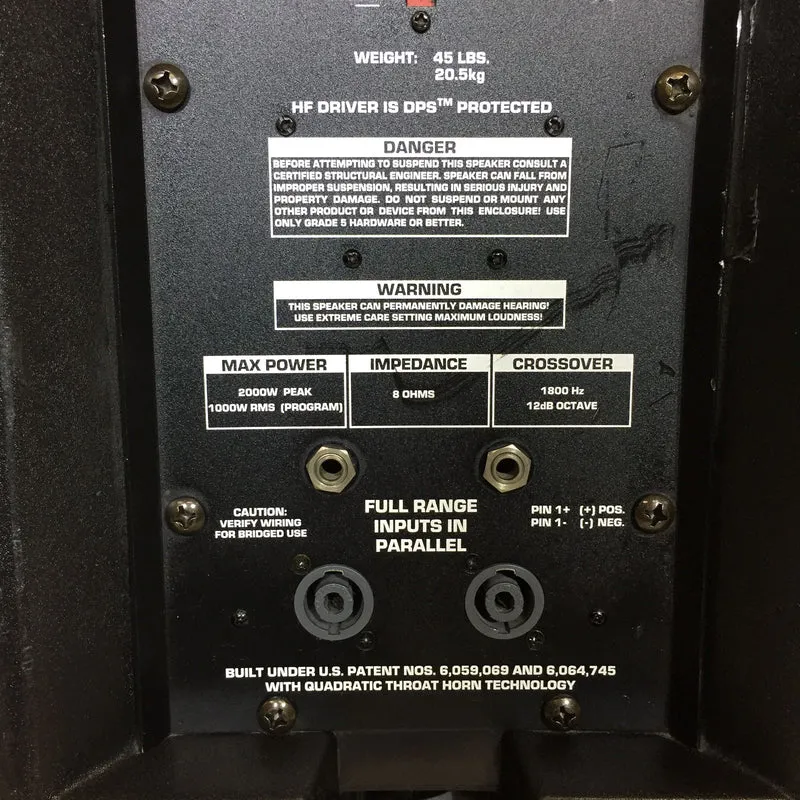

input connections	2x 1/4" phone jacks paralleled with
	2x Neutrik® NL4 Speakon® for full-range inputs.
	1x Neutrik NL4S switching Speakon for bi-amp inputs.
enclosure materials and finish	Dark gray high-impact polypropylene 1/4" thick finished in molded textured finish
mounting provisions	(8) 1/4"-20 threaded mounting points, four each top and bottom
dimensions (H x W x D)	Front 23.65 in. x 17.75 in. x 14.00 in. 601 mm x 451 mm x 356 mm
	Rear 22.25 in. x 10.00 in. x 14.00 in. 565 mm x 254 mm x 356 mm
net weight	45 lbs. (20.5 kg)
