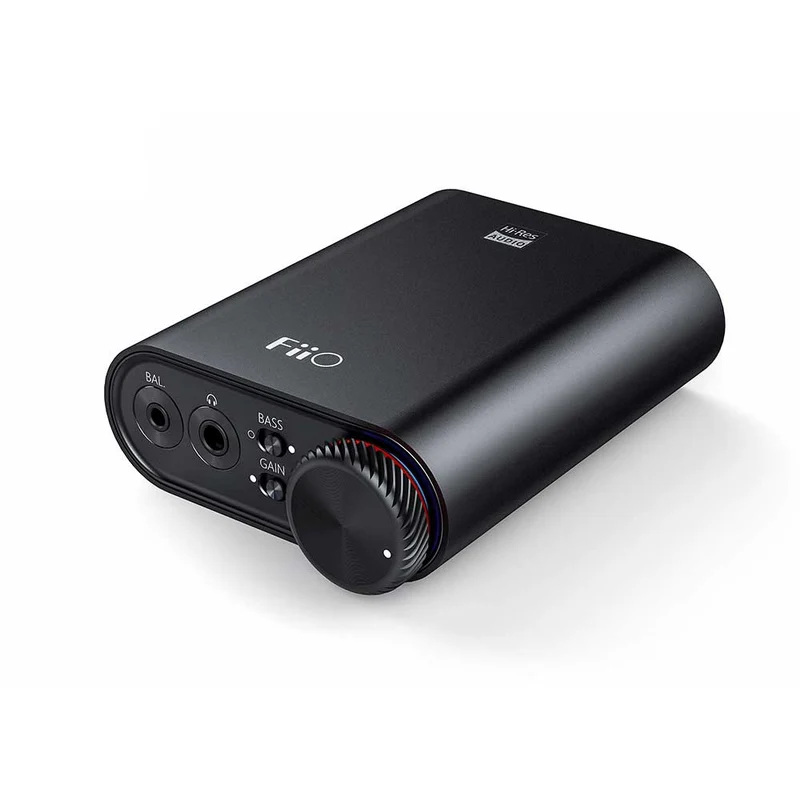

FiiO K3

________________________________

Pre-order : available in august

________________________________

Specifications

Model: K3

USB: Type-C

USB Audio Class: UAC1.0 + UAC2.0

Volume Knob: ADC

Gain: L/H

Bass Boost: 0/+6Db

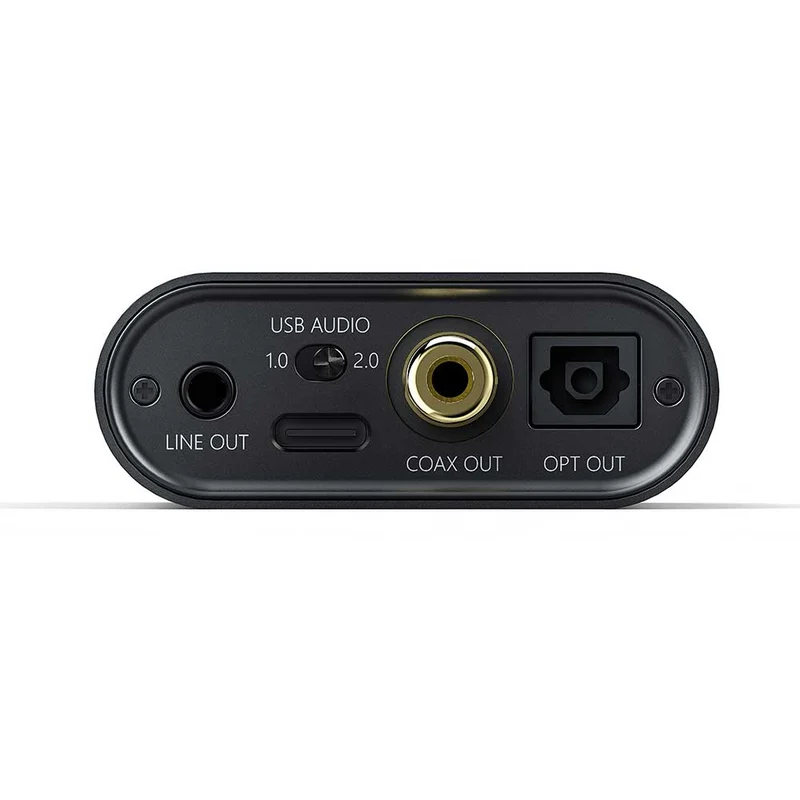

Line Out: 3.5mm

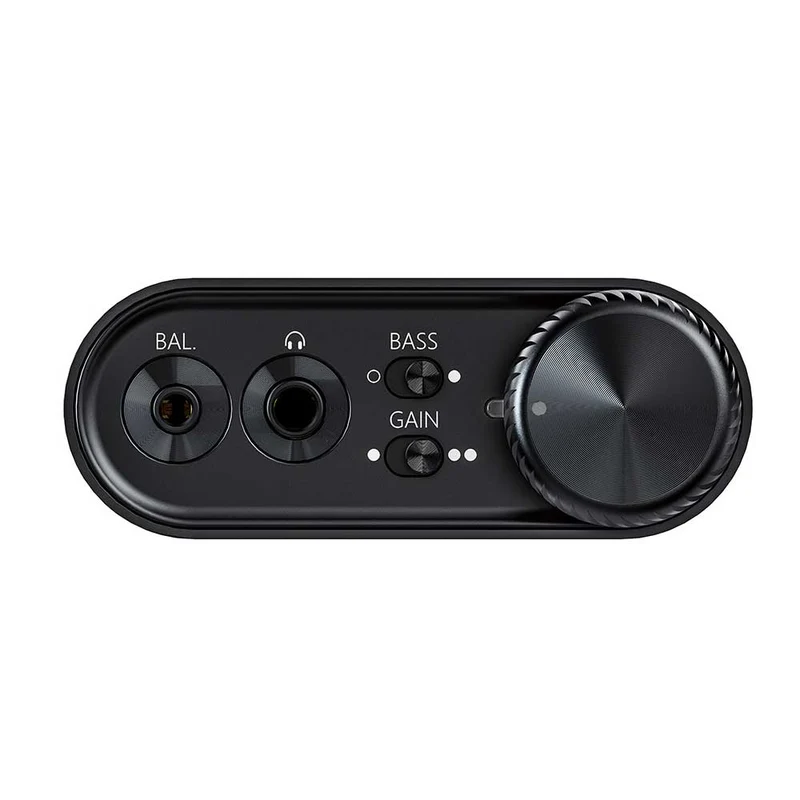

Headphone Out 1: 3.5mm single-ended output

Headphone Out 2: 2.5mm TRRS balanced output

Coaxial Out: RCA for 192kHz, support DSD64 DOP

Optical Out: Up to 96kHz

USB Chip: XMOS XUF208

USB Driver: ASIO/KS/DS/WASAPI/DSD DOP(Native)

Audio DAC: AKM AK4452

LPF OP AMP: TI OPA1612

Driver OP AMP: OPA926×2

Output Power 1 (3.5mm headphone output): 220mW(16Ω)

120mW(32Ω)
Output Power 2 (2.5mm TRRS balanced headphone output): 320mW(16Ω)

200mW(32Ω)

Line Level: 1.9Vrms

DAC: 384kHz/32bit

DSD: DSD256

SNR: ≥113dB

THD+N: ≤0.004%

Frequency Response: 20Hz-80kHz

RGB indicator: Sample rate ≤ 48kHz  - Blue

            Sample rate >48kHz – Yellow

            DSD format - Green

Dimensions: 70×58×22mm

Weight: 82g
