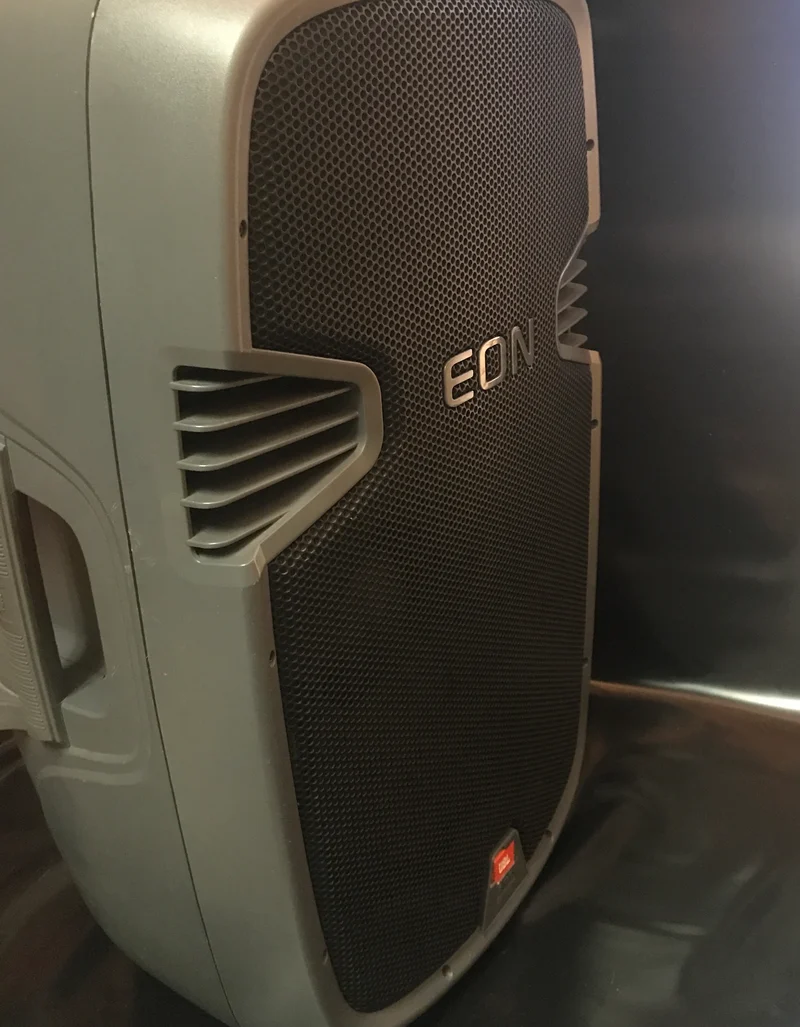

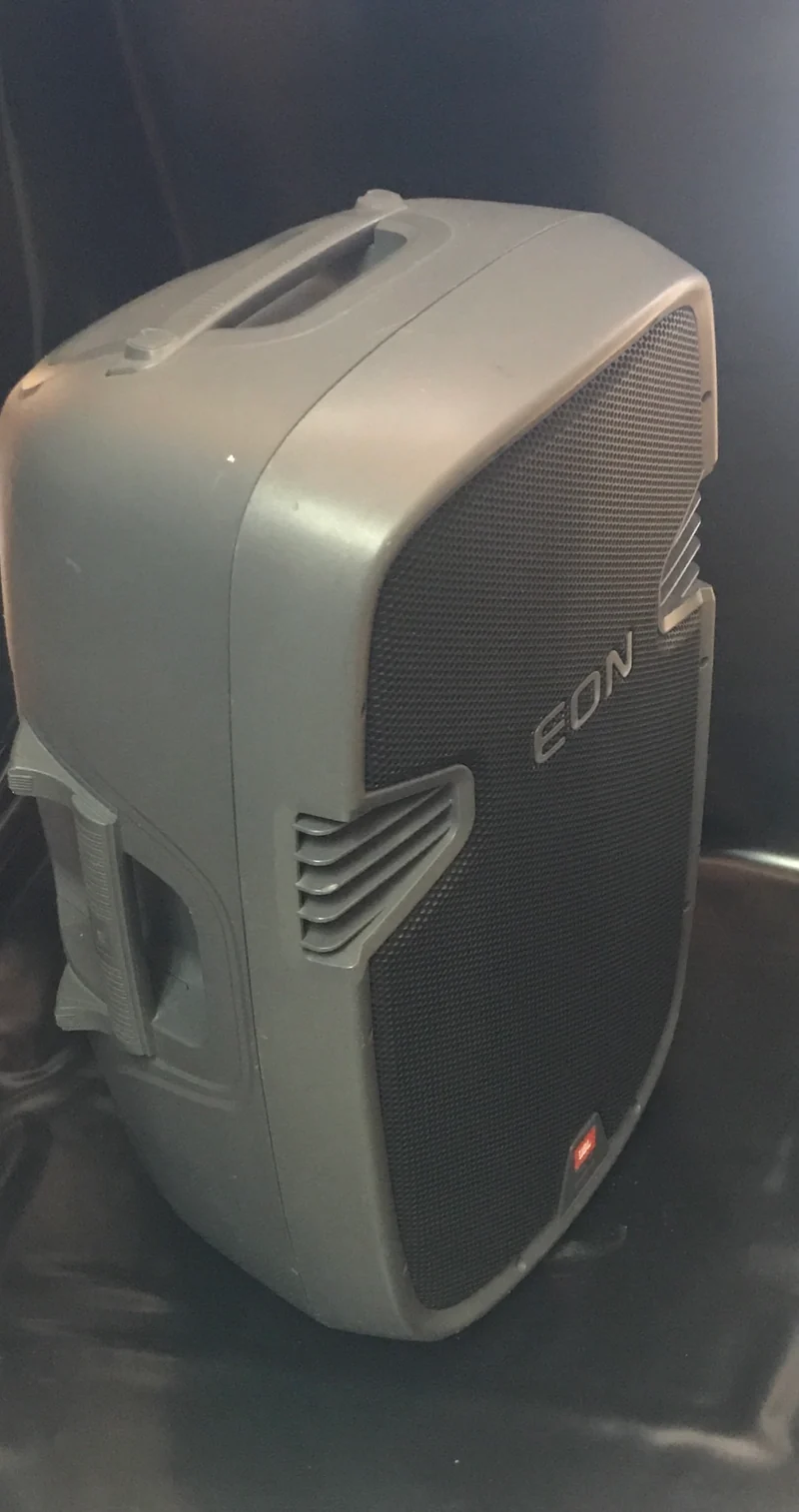

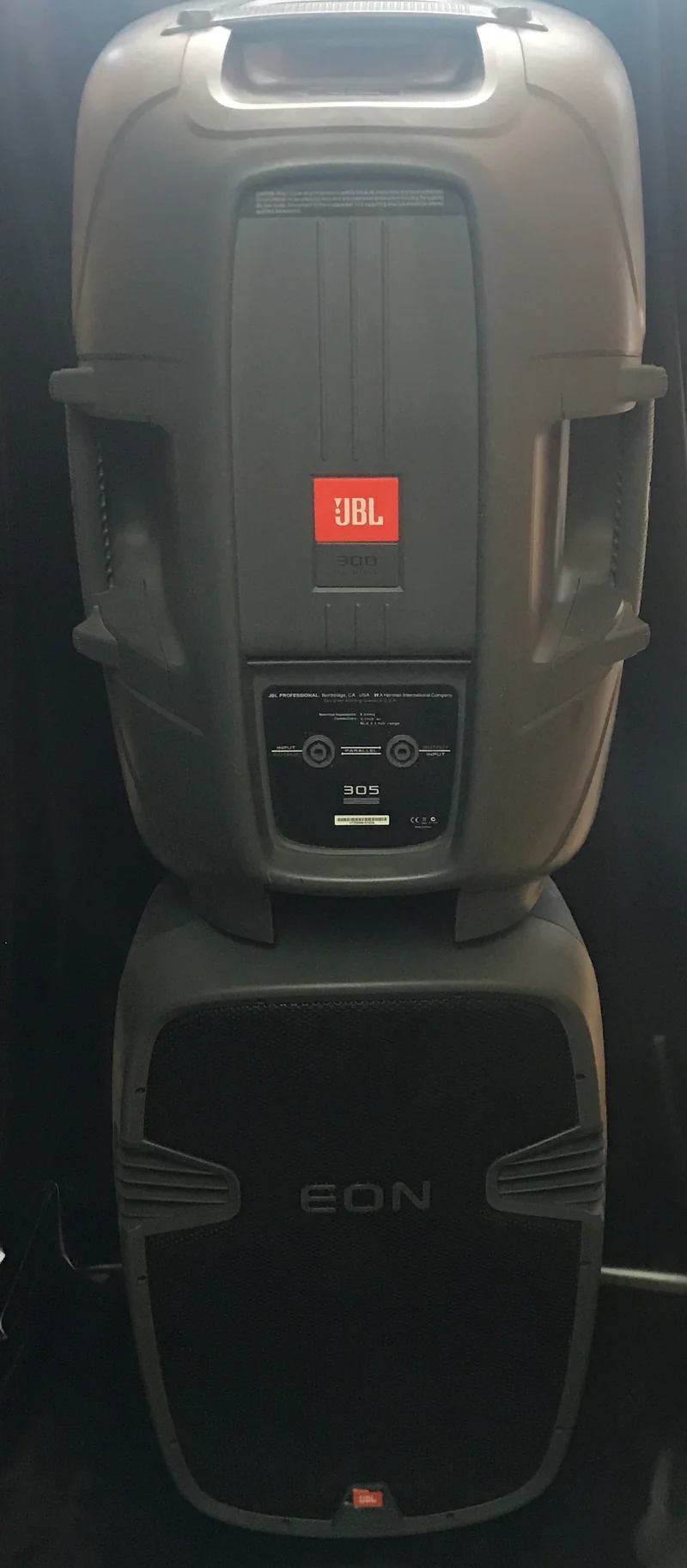

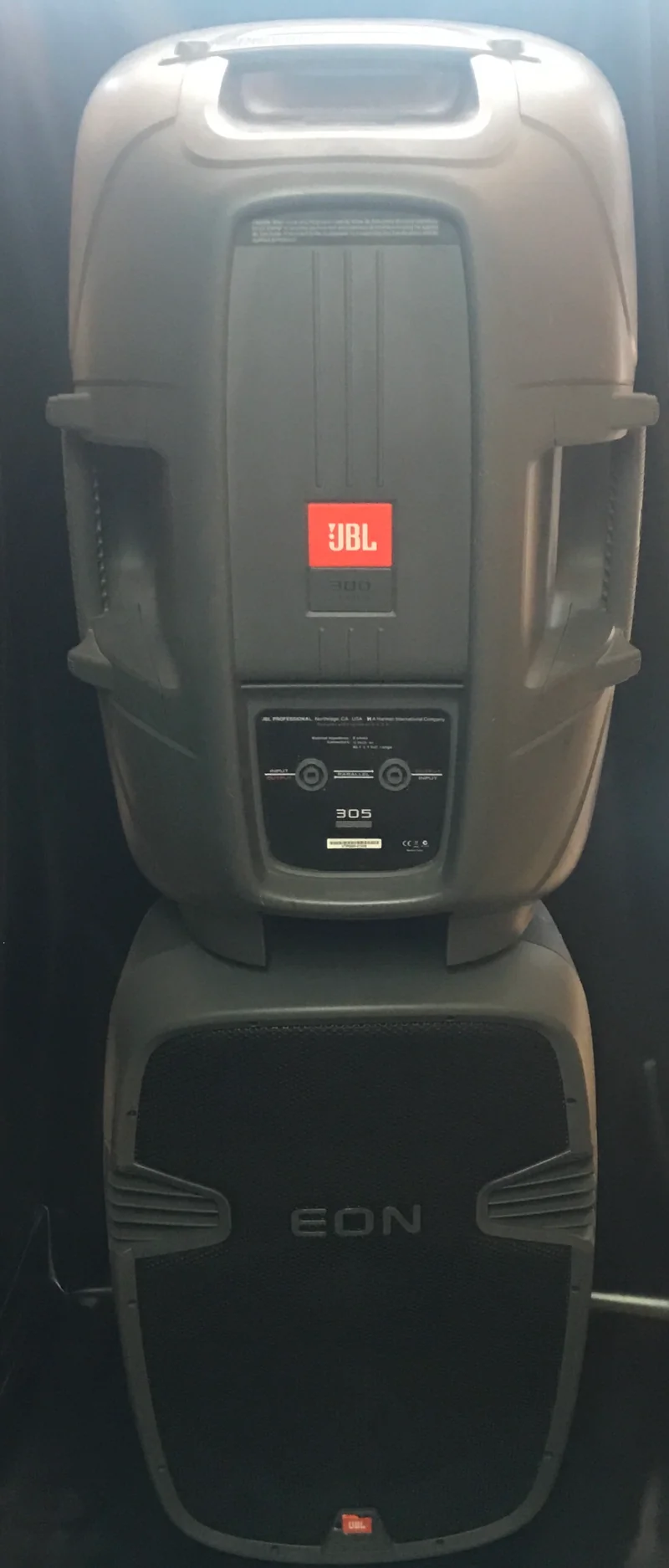

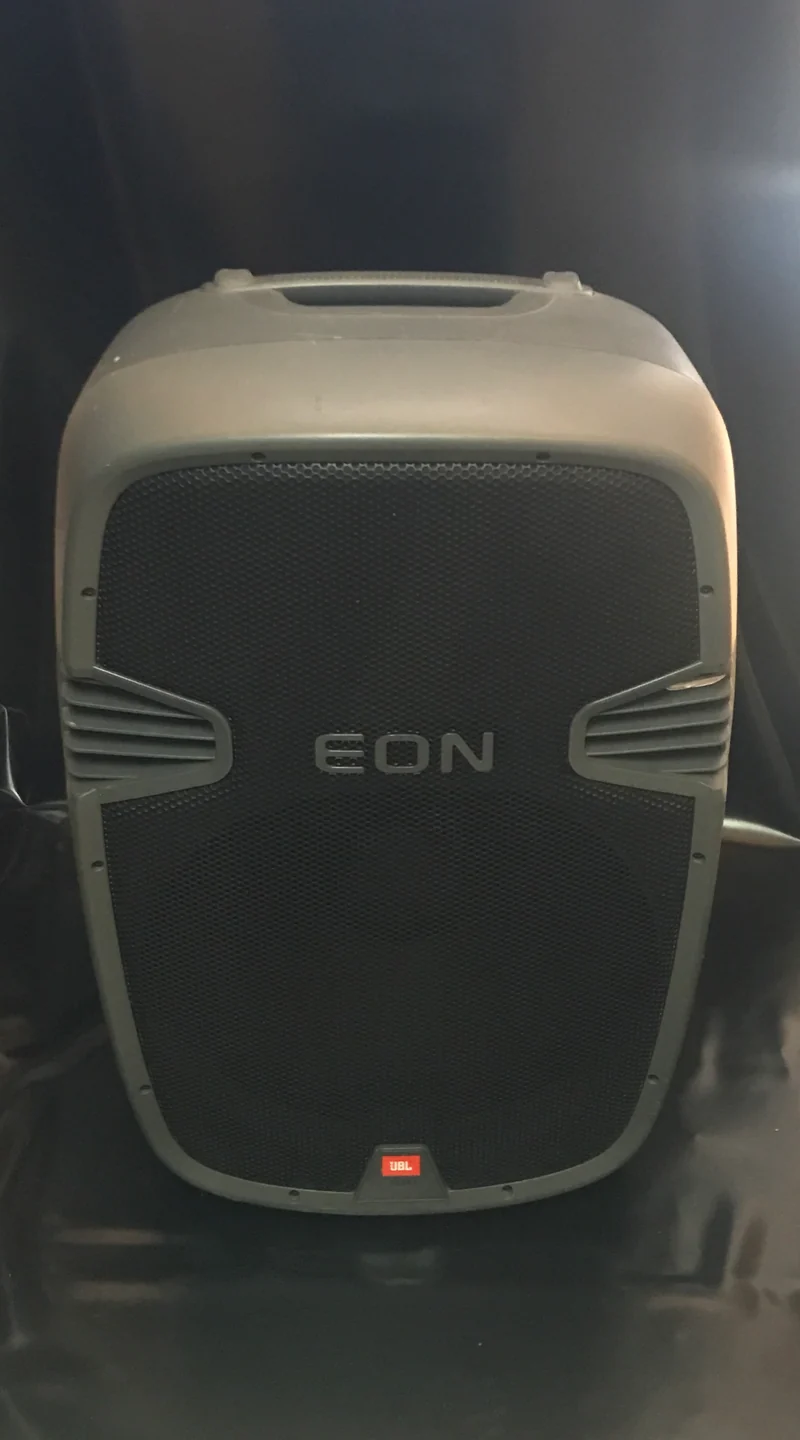

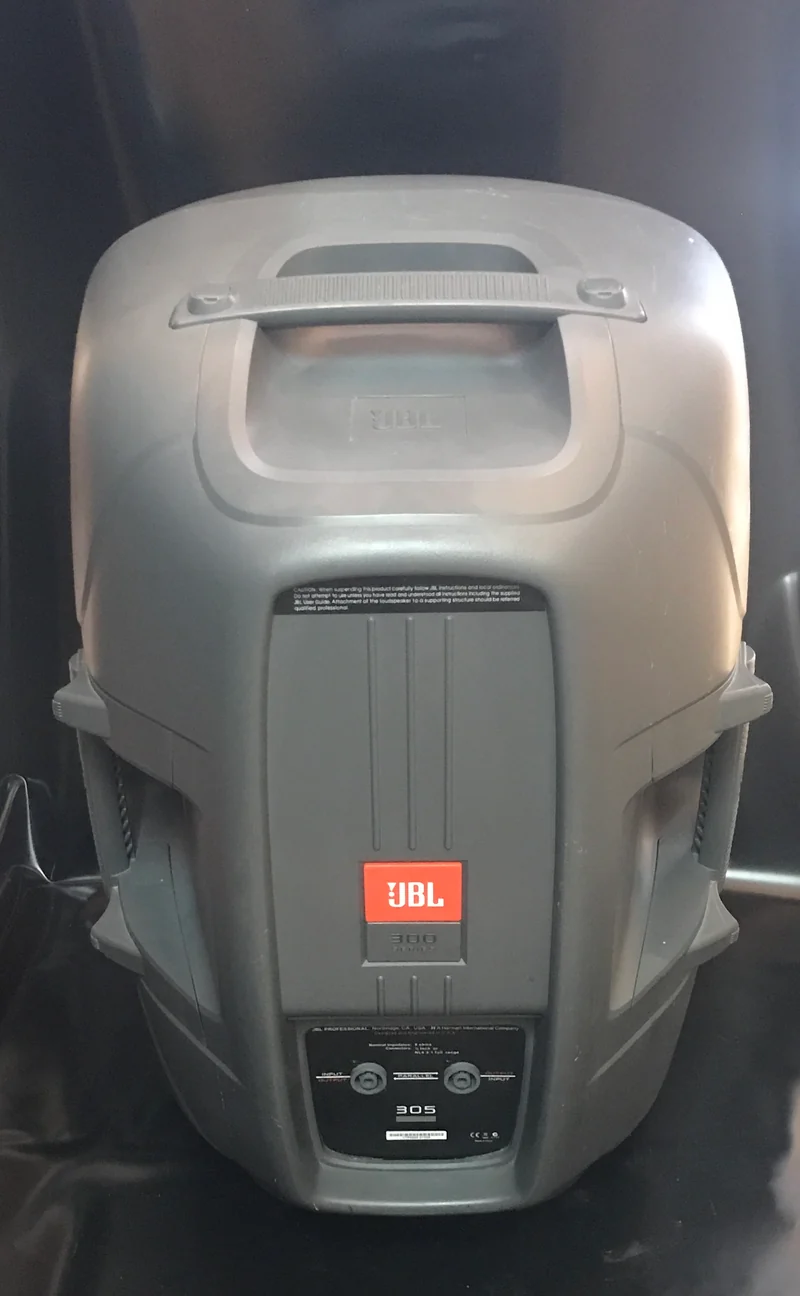

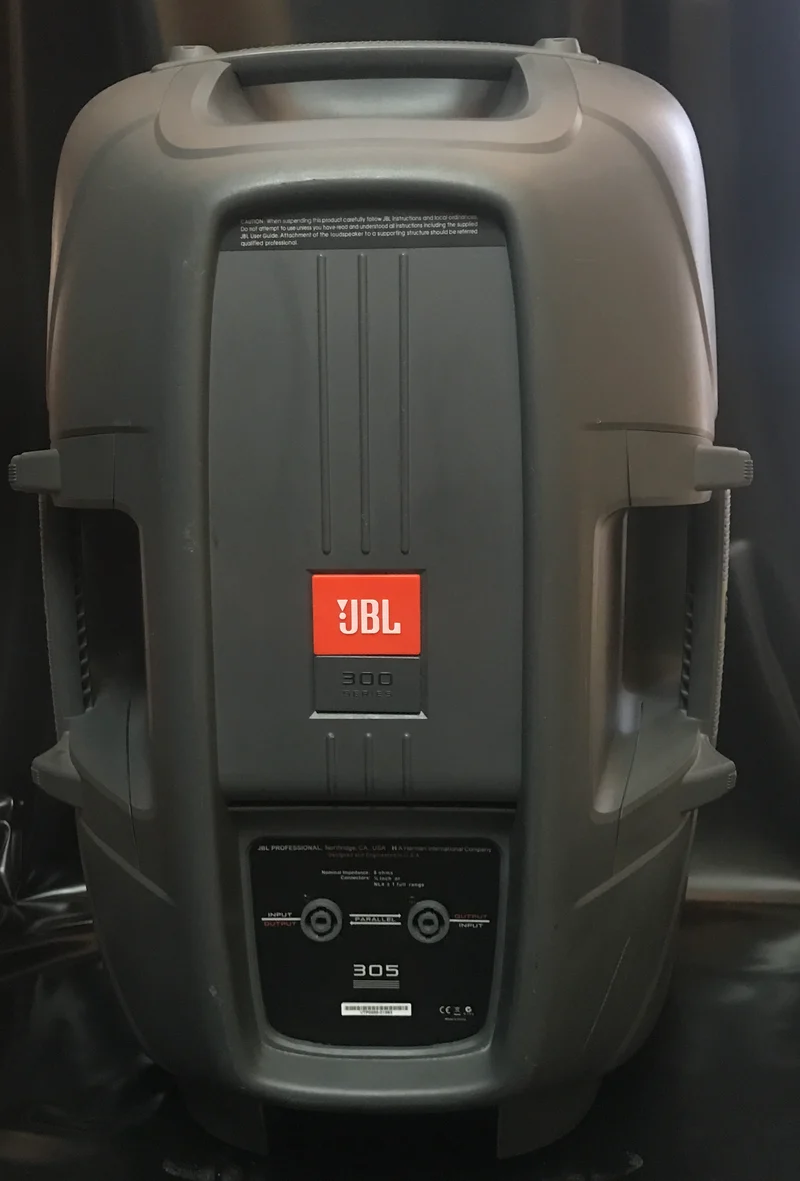

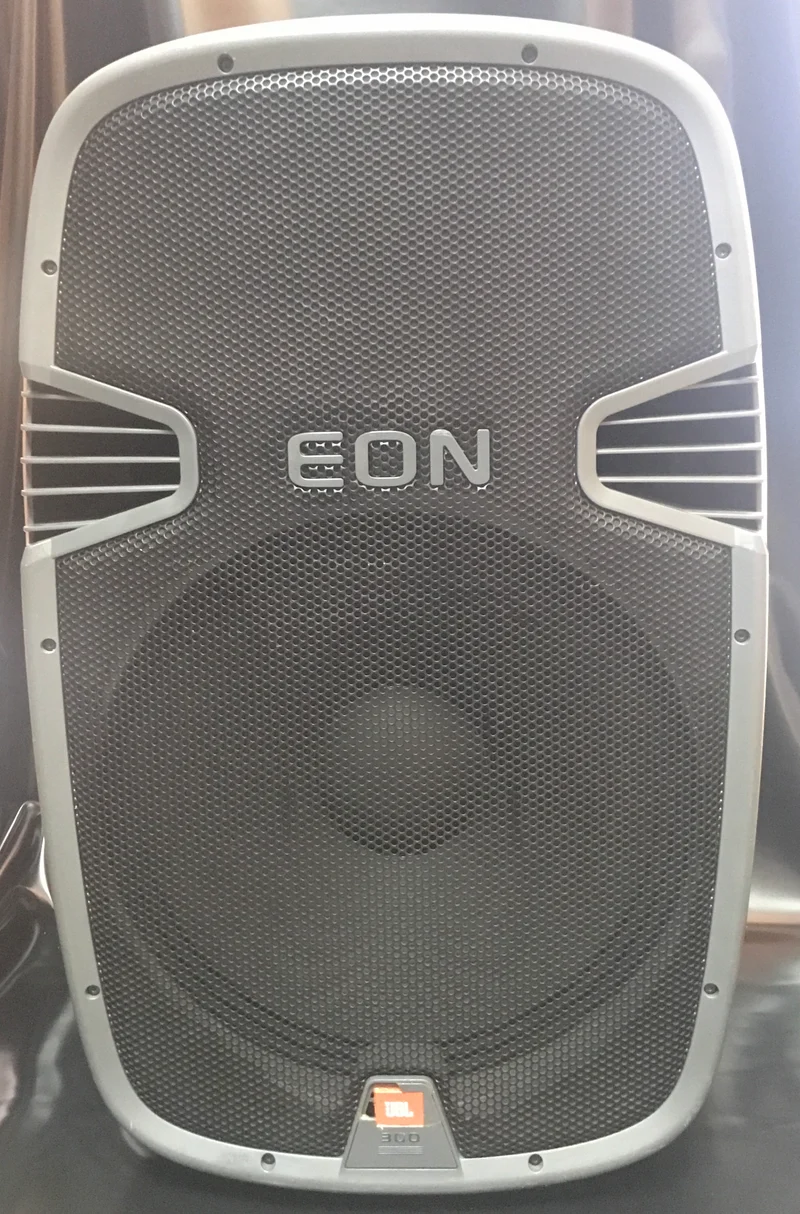

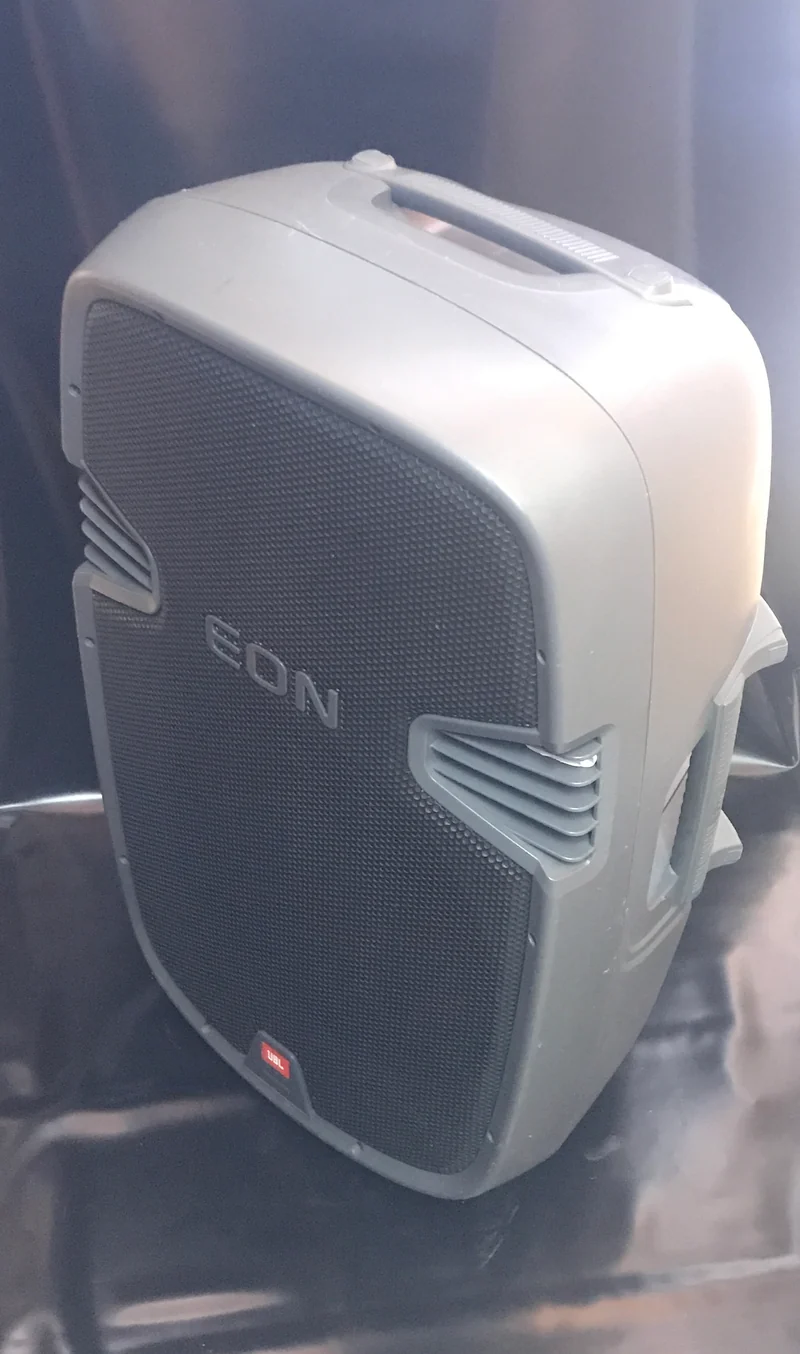

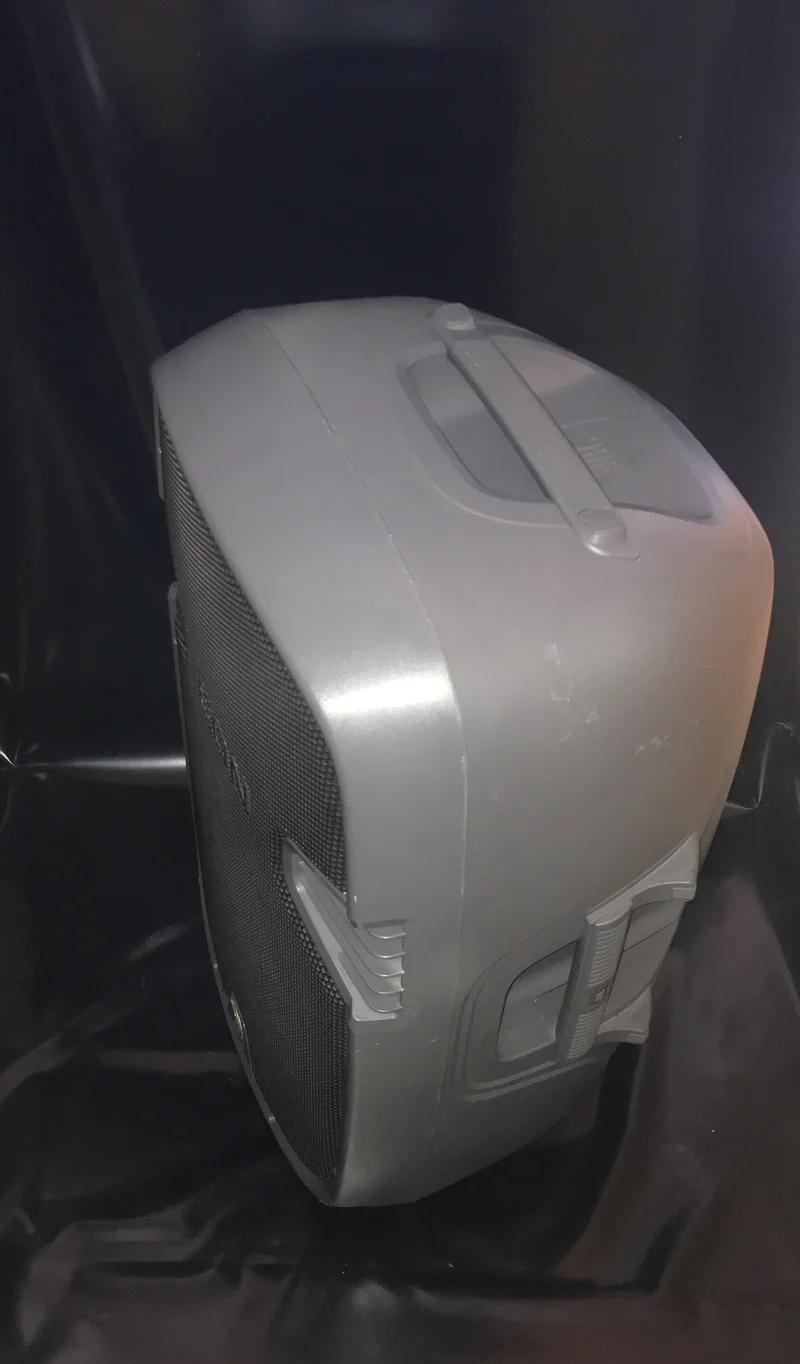

JBL EON 305 Passive Single Speaker - USED

Portable 15", Two-Way, Bass-Reflex Design

The EON305 is a 15-inch, two-way, passive, portable speaker system. It is a light weight loudspeaker system capable of fullbandwidth reproduction at high levels. The EON315 is comprised of a 380 mm (15 in) JBL woofer, a 25.4 mm (1 in) neodymium high frequency compression driver coupled to a 100° H by 60° V waveguide. The system will handle 250 watts continuously and 1000 watts peak

Features

• 250 watt Passive Speaker System, with a 500 watt program power and 1000 watt peak power rating
• Light Weight, at only 15 kg (33 lbs) it is truly portable
• Multiple handles for easy transport
• JBL 15" low-frequency driver with a 64mm (2 ½ in) diameter edge wound ribbon voice coil
• 1" throat diameter next generation JBL neodymium compression driver.
• 100° H x 60° V asymmetrical waveguide for uniform audience coverage
• SonicGuard™ HF protection
• NL4 and ¼" input connectors
• Loop thru signal flow for extended system application and easy “daisy-chain” connections
• Integrated M10 suspension points for easy rigging
• Multi angle enclosure for main or monitor applications
• Integrated 36 mm pole mount socket with stabilizing securing screw
• Highly designed composite enclosure for durability, lightweight, and acoustic performance

Applications

• Live sound reinforcement, speech and vocals, music playback in entertainment, A/V, and institutional venues – especially when ease of use and portability are important factors.
• Perfectly matched for powered-mixer systems.
• Everywhere you need to be heard.

Specifications

• System Type: 15", two-way, bass-reflex design
• Frequency Range (-10 dB): 38 Hz - 20 kHz
• Frequency Response (±3 dB): 50 Hz - 18 kHz
• Coverage Pattern: 100° H x 60° V nominal
• Directivity Index (DI): 9 dB
• Directivity Factor (Q): 8
• Crossover Frequency: 1.9 kHz
• System Power Rating: 250 W continuous, 500 W program, 1000 W peak
• Sensitivity (1w/1m): 98 dB
• Maximum SPL: 128 dB
• Nominal Impedance: 8 Ohms
• LF Driver: 1 x M115-8 380 mm (15 in) woofer
• HF Driver: 1 x JBL 2414H-1 25.4 mm (1 in) polymer diaphragm compression driver
• Input Connector: Parallel Neutrik® NL4 / ¼" combo connectors
• HF Protection: SonicGuard™ Circuit
• Enclosure: PP impact copolymer, multi-purpose main & monitor orientation
• Handles: One left/right side, one on top.
• Suspension / Mounting: 36 mm pole socket with stabilizing screw, 4 x M10 suspension points 1 x M10 pull-back point.
• Grille: Powder coated perforated steel with acoustically transparent black screen backing
• Dimensions (H x W x D): 685 mm x 438 mm x 366 mm (27 in x 17.3 in x 14.4 in)
• Net Weight: 15 kg (33 lb)
