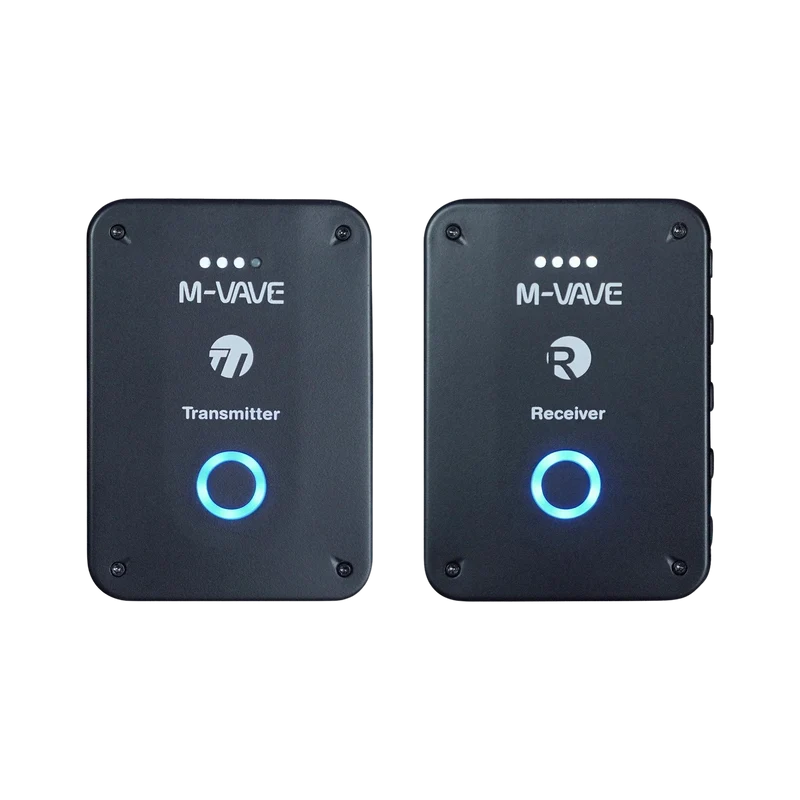

M-VAVE 2 - Wireless in-ear monitor system

Revolutionary Launch

Experience the excellence of wireless audio with our revolutionary new release. Designed to surpass its predecessor, this device offers professional sound quality with 24bit/48KHz lossless digital transmission, ensuring clear audio fidelity in the 2.4GHz wireless band. The effective transmission reaches up to 30 meters outdoors, eliminating the constraints of traditional cables.

Multi-User Capability

One transmitter can send sound to up to 4 receivers, allowing 4 musicians to listen from a single transmitter. For individual monitoring, it is recommended to use one transmitter per receive

Compact and Efficient

This model features a unique design, making it ideal for use as a mini belt-pack device. Integrated LED lights provide clear information on audio status (stereo or mono), battery level, volume, and mute function. Equipped with a lithium-ion battery, the device guarantees over 6 hours of continuous use when fully charged.

Versatile

This new model supports the connection of up to four receivers to a single transmitter simultaneously, optimized for operations requiring multiple transmissions. Enhancements include a more intuitive and efficient power button and a one-click accessible mute function.

Adjustable settings for mono or stereo outputs make this device compatible with a wide range of audio equipment. Each receiver features five levels of volume adjustment, allowing precise sound customization. This advanced model is completed by a frequency response of 20 to 20kHz, capturing all sound details accurately.

Technical Specifications

• Sound Quality: 24bit/48KHz lossless digital transmission
• Wireless Band: 2.4GHz
• Latency: 10.8 ms in stereo, 4.5 ms in mono
• Effective Range: 30 meters outdoors, 15 meters with walls
• Battery: Rechargeable lithium-ion via USB Type-C
• Frequency Response: 20Hz to 20kHz, with a variation of +1dB/-3dB
• Body Dimensions: 60mm (L) x 40mm (W) x 15mm (H)
• Body Weight: 50g
• Total Packaged Weight: 145g

How to Use the M-VAVE 2:

1. Connect the transmitter to the output of your sound mixer. It features a 3.5mm (P2) input and includes a 3.5mm to 3.5mm cable for easy setup.
2. The receiver, worn by the musician, plugs directly into their headphones, allowing for convenient and wireless monitoring.
3. For stereo sound, use a dual XLR to 3.5mm cable (sold separately) to connect the transmitter directly to your mixer’s XLR output.

How the M-VAVE 2 Works:

• The transmitter connects to your mixer and sends the audio signal wirelessly.
• The receiver, worn by the musician, picks up the transmitted signal and delivers it directly to their headphones.

This system ensures high-quality, cable-free sound with the freedom to move around the stage. Perfect for musicians who value convenience and professional performance!
