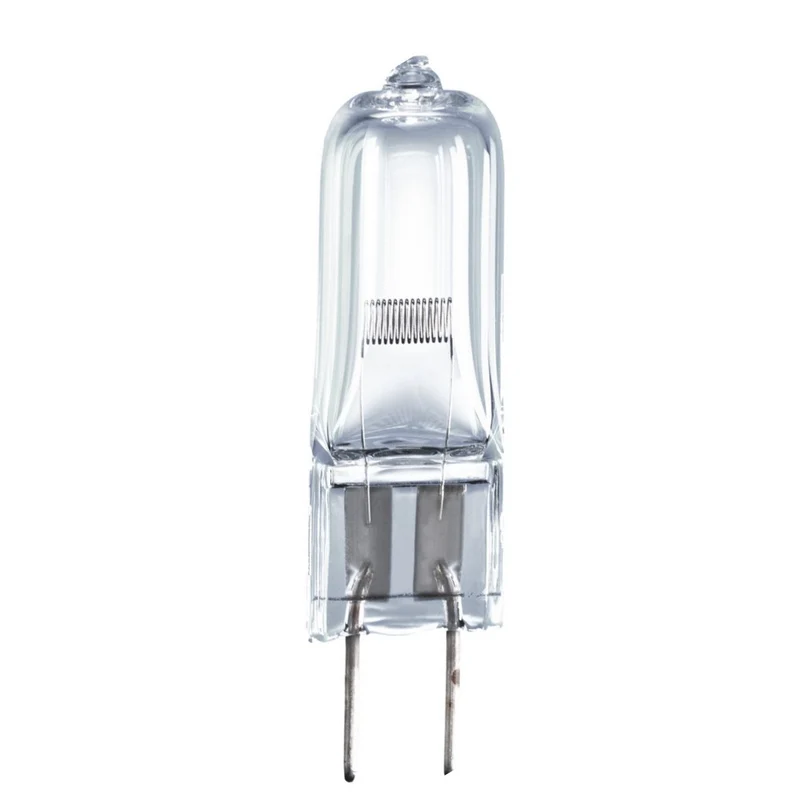

Osram 64623 HLX Low-voltage Halogen Lamp without Reflector 12V 100W G6.35

Product family features

• Xenon instead of krypton as the filler gas (XENOPHOT HLX versions)
• Luminous flux up to 10 % higher with same power consumption (XENOPHOT HLX versions)
• HLX tungsten halogen low-voltage lamp with or without reflector
• Dimmable (HLX)

Product family benefits

• Compared to standard lamps up to 10 % higher luminous efficacy (HLX)
• Instant light (HLX)

Areas of application

• Lamps for special luminaires
• Medical fiber optics (HLX)

Electrical data

Nominal voltage

12.0 V

Nominal wattage

100.00 W

Photometrical data

Color temperature

3300 K

Nominal luminous flux

2800 lm

Color rendering index Ra

100

Dimensions & weight

Diameter

11.5 mm

Length

44.0 mm

Light center length (LCL)

30.0 mm

Filament length

4.70 mm

Illuminated field

4.7*2.7 mm²

Filament diameter

2.7 mm

Lifespan

2000 h
