Vendeur: RCF

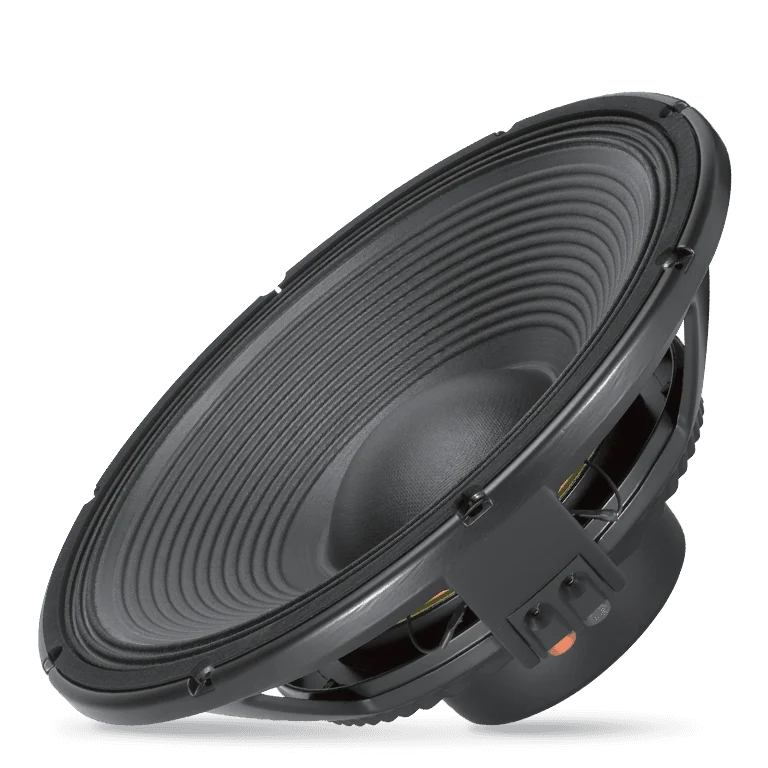

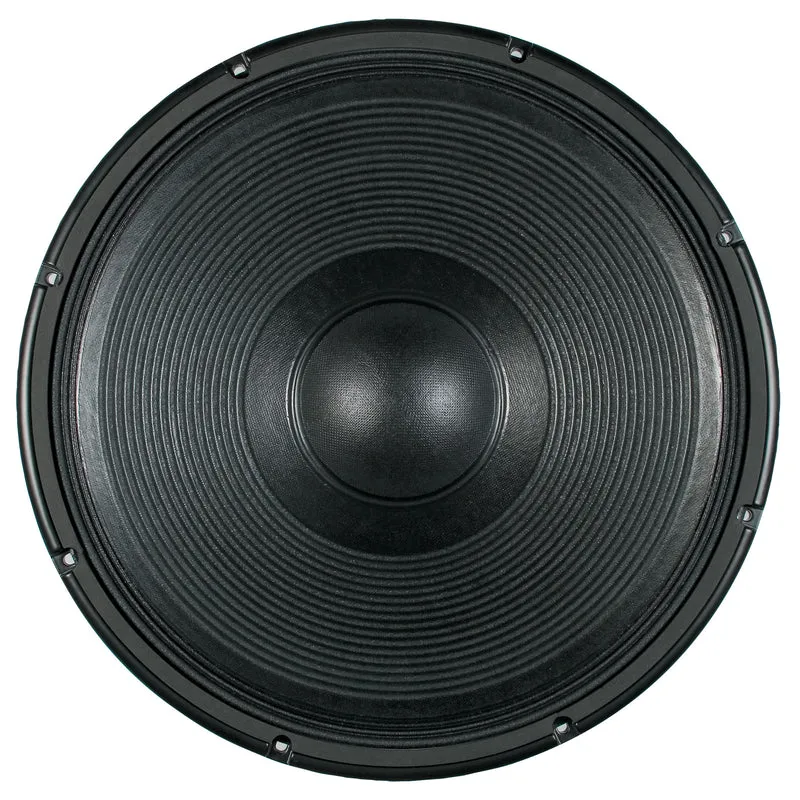

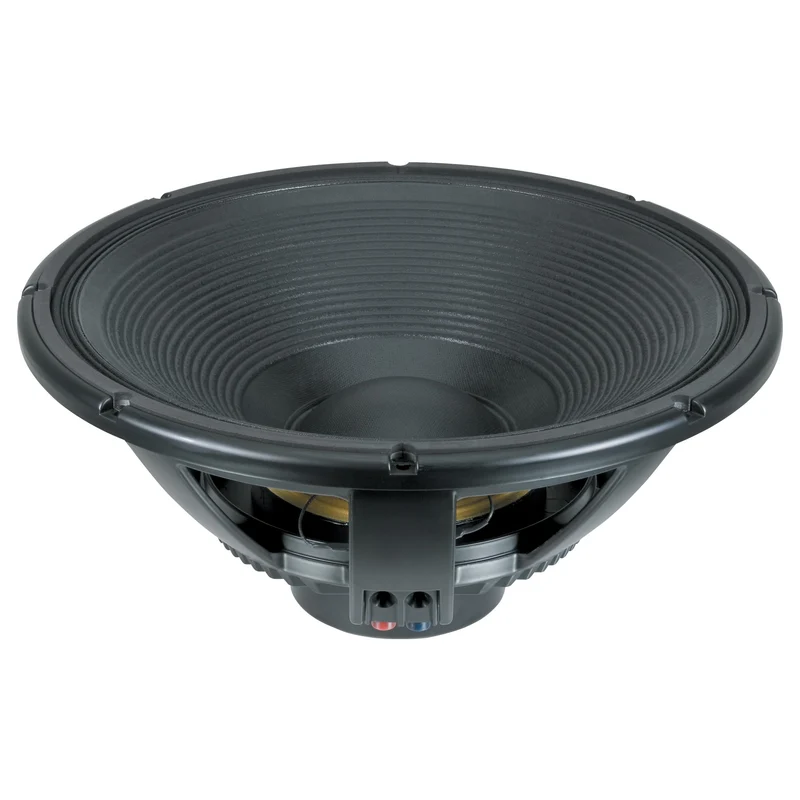

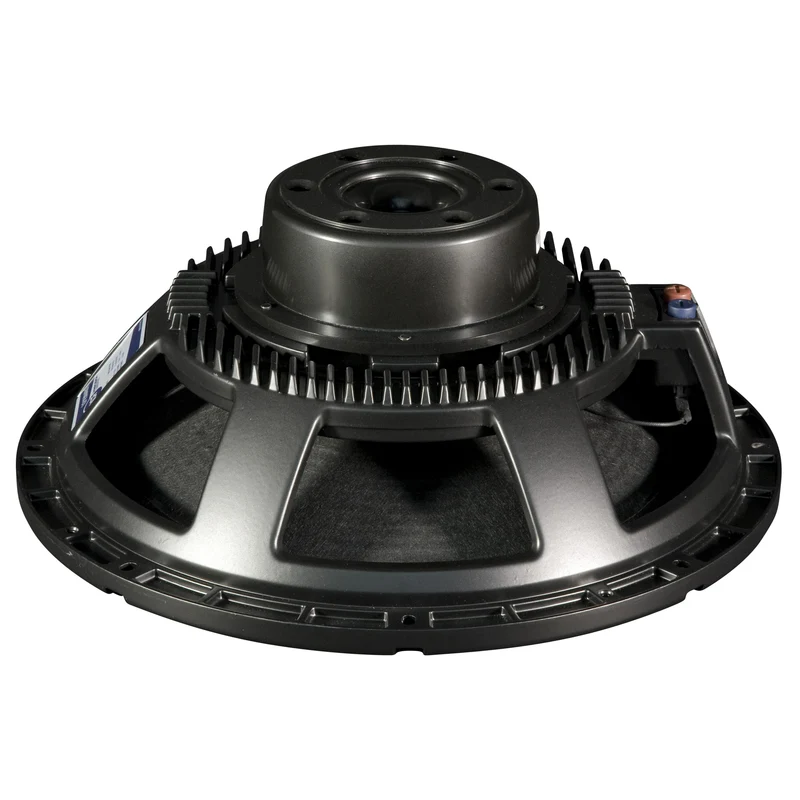

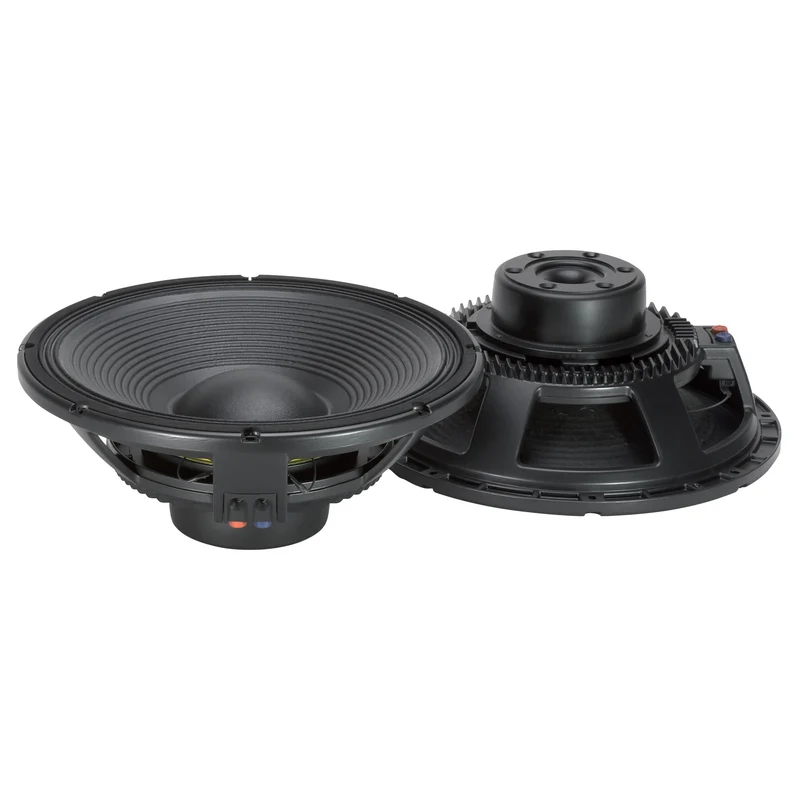

RCF LF15N401 Precision Transducer 15" Neodymium Woofer 900W RMS/1800W Program 35-1500Hz(11100013) - NEW

298,49 €186,59 €Promotion
Quantité

Détails du produit

FEATURES

  • 4-inch, fiberglass inside/outside copper voice coil
  • 1800W continuous program power handling
  • 97 dB Sensitivity
  • 35 Hz – 1.5 kHz Frequency range
  • Dual-forced air ventilation and 15mm top plate for minimum power compression
  • Dual spider design with silicon based dampening control
  • Triple-roll surround and corrugated straight cone geometry

Incredibly linear frequency response characteristics, the highest power handling of any comparable 15-inch neodymium transducer,the lower power compression. The LF15N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.

Overall diameter: 393 mm / 15.47 inches Bolt circle diameter: 371-376 mm / 14.61-14.8 inch Bolt hole diameter: 7 mm / 0.28 inch Front mount baffle cut-out: 354 mm / 13.94 inch Rear mount baffle cut-out: 354 mm / 13.94 inch Volume occupied by the driver: 3.8 liters / 0.15 ft3

SPECIFICATIONS

Nominal Diameter: 15 inch / 381 mm Rated Impedance: 8 ohm Program Power (watt): 1800 W Power handling capacity: 900 W Sensitivity: 97.0 dB Frequency range: 35 - 1500 Hz Effective piston diameter: 340 mm / 13.39 inch Max. Excursion Before Damage: 52 mm / 2.05 inch Minimum Impedance (ohm): 6.3 ohm Voice Coil Diameter: 4.0 inch / 102 mm Voice Coil Winding Material: Copper Voice Coil Length: 25 mm / 0.98 inch Number of layers: 2 Kind of layers: inside/outside Top Plate Thickness: 15 mm / 0.59 inch Cone Design: Straight Surround Material: Polycotton Surround Design: Triple roll Magnets: Neodymium Dual-force air ventilation: Yes Spider: Dual with silicon based damping control

Height: 160 mm / 6.3 inches Diameter: 393 mm / 15.47 inches Weight: 8.77 kg / 19.33 lbs


PART NUMBER: 11100013 LF15N401
