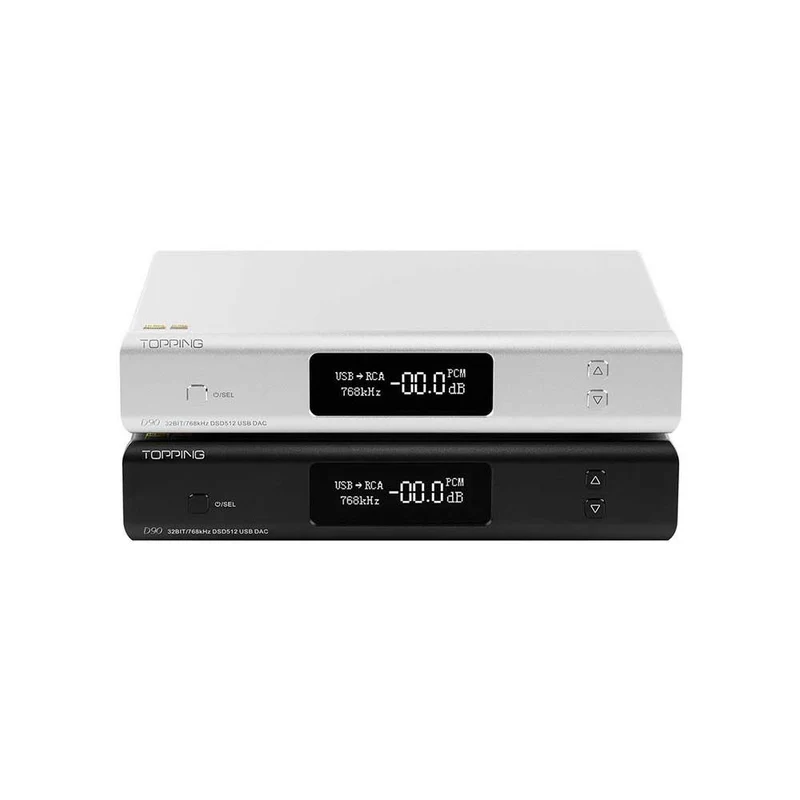

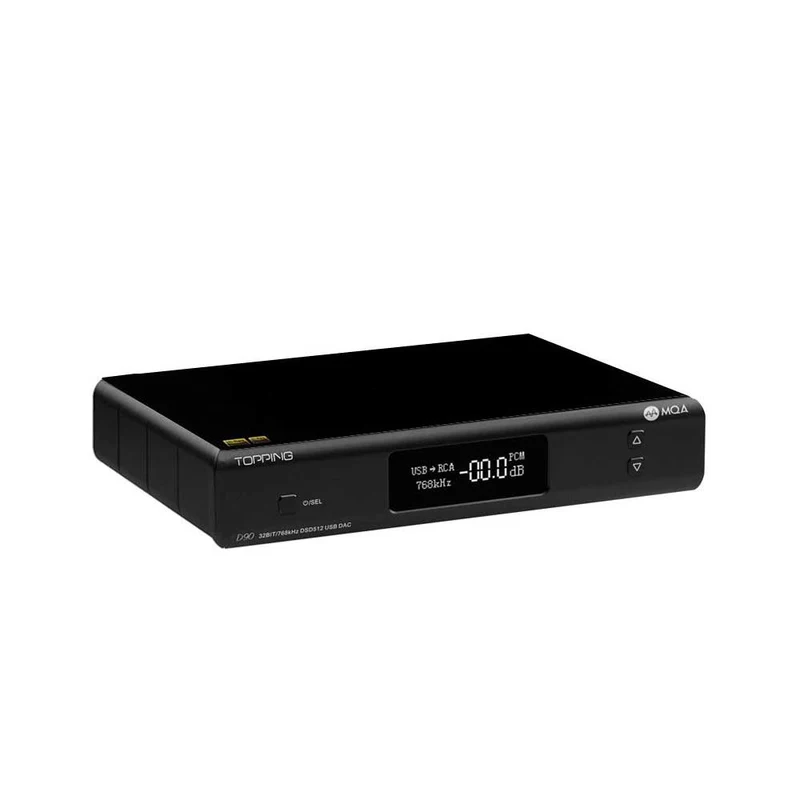

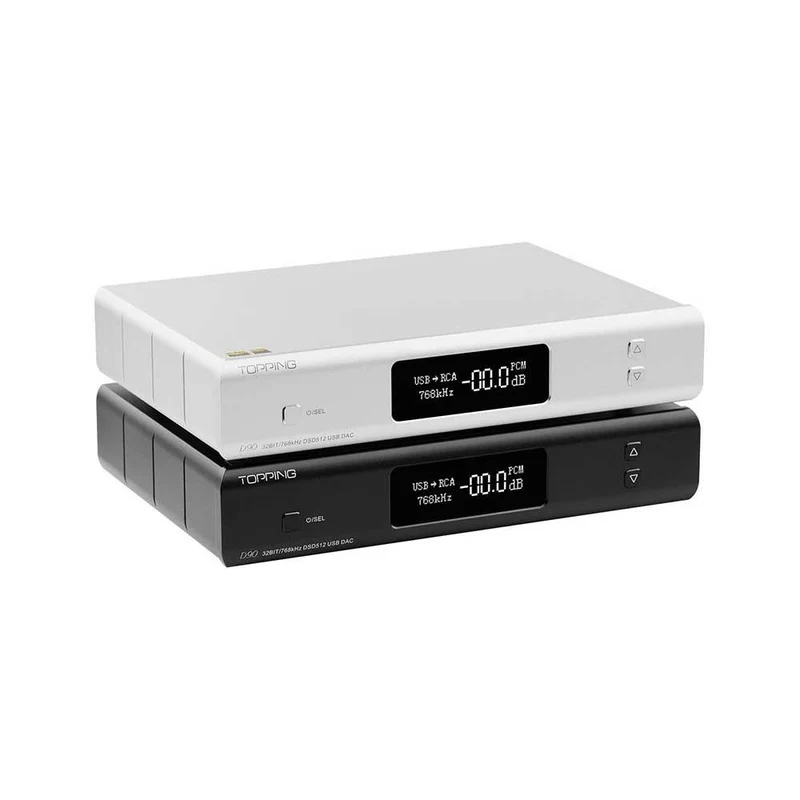

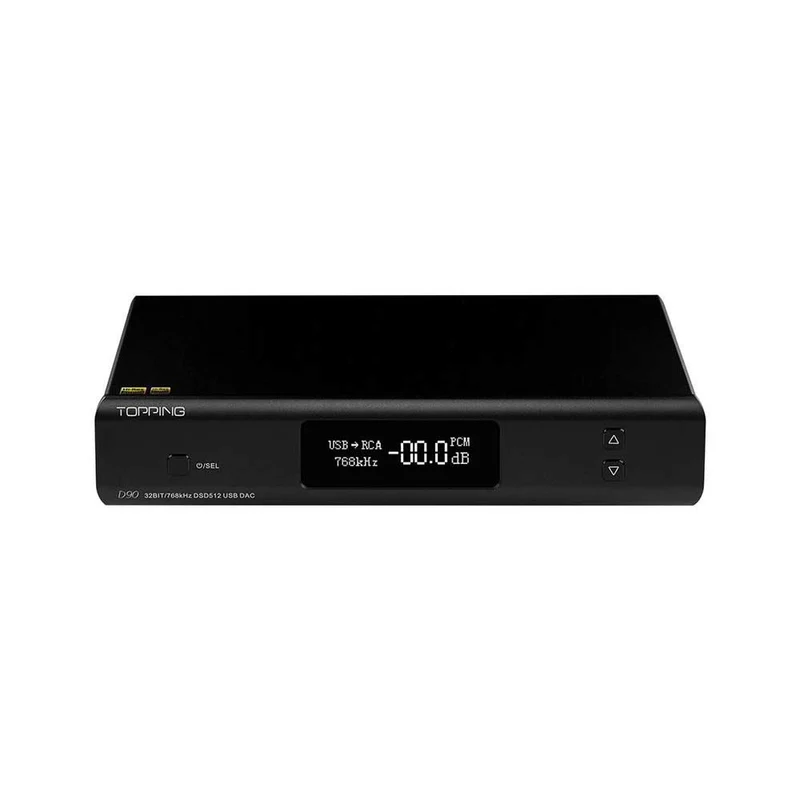

Topping D90

________________________________________________________

Pre-order : get 10% discount with the code "FIRST"

(valid until 22/08 - pre-order closing on 23/08)

________________________________________________________

Specifications

Product type	DAC
DAC Chip	AKM AK4499
USB Interface	XMOS XU208
SPDIF Interface	AK4118
Bluetooth	5.0 / Apt-X HD / LDAC
Inputs	1x I2S LVDS (HDMI) 1x USB-B (XMOS) 1x Optical Toslink 1x Coaxial SPDIF 1x AES/EBU
Outputs	1x Balanced XLR 1x Single-ended RCA
Supported sampling rates	USB : PCM up to 32bit 768kHz / Native DSD up to DSD512 / DSD DoP up to DSD256 I2S : PCM up to 32bit 768kHz / DSD up to DSD512 Coaxial, Optical, AES : PCM up to 24bit 192kHz
Output voltage	RCA : 2Vrms @ 0dBFS XLR : 4Vrms @ 0dBFS
Dynamic range (A-Weighting)	128dB

General

Power supply	AC 110V/220V 50/60Hz (switchable) via IEC (cable included)
Case material	Aluminium
Color	Black

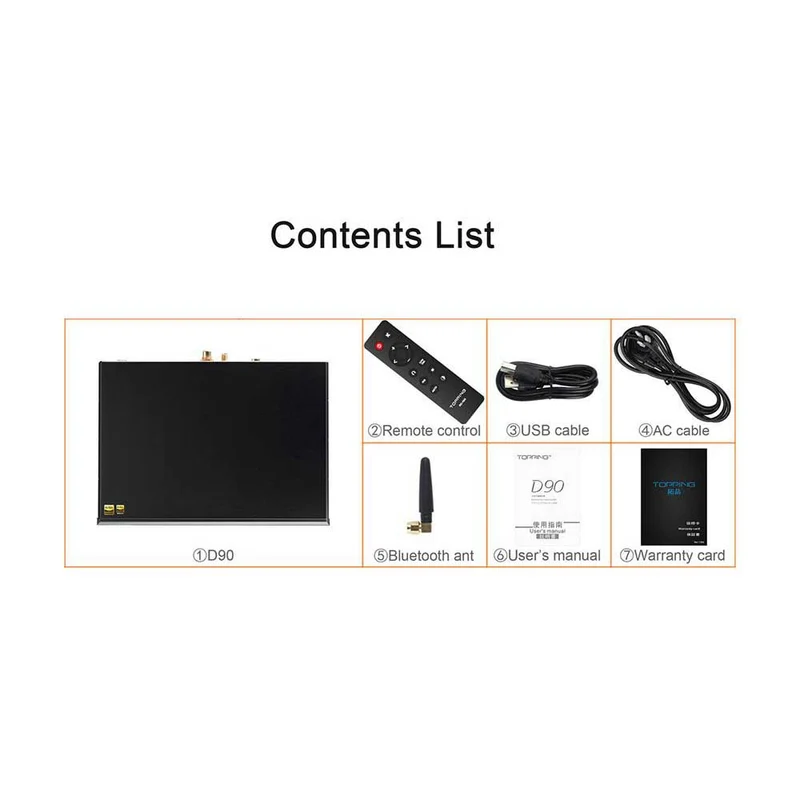

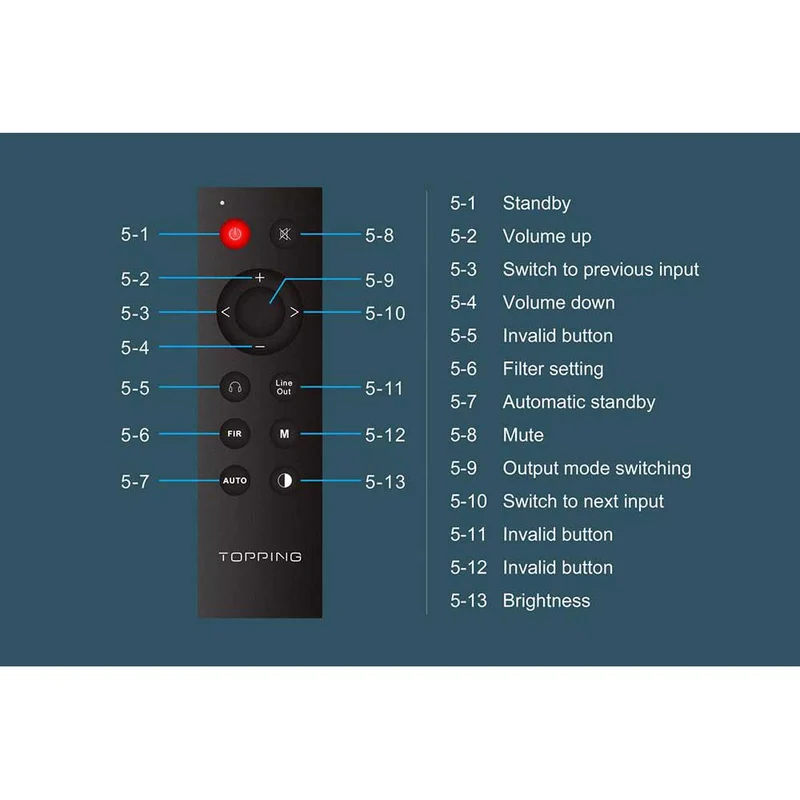

Included	USB-B to USB-A cable / Power cable / Remote control
