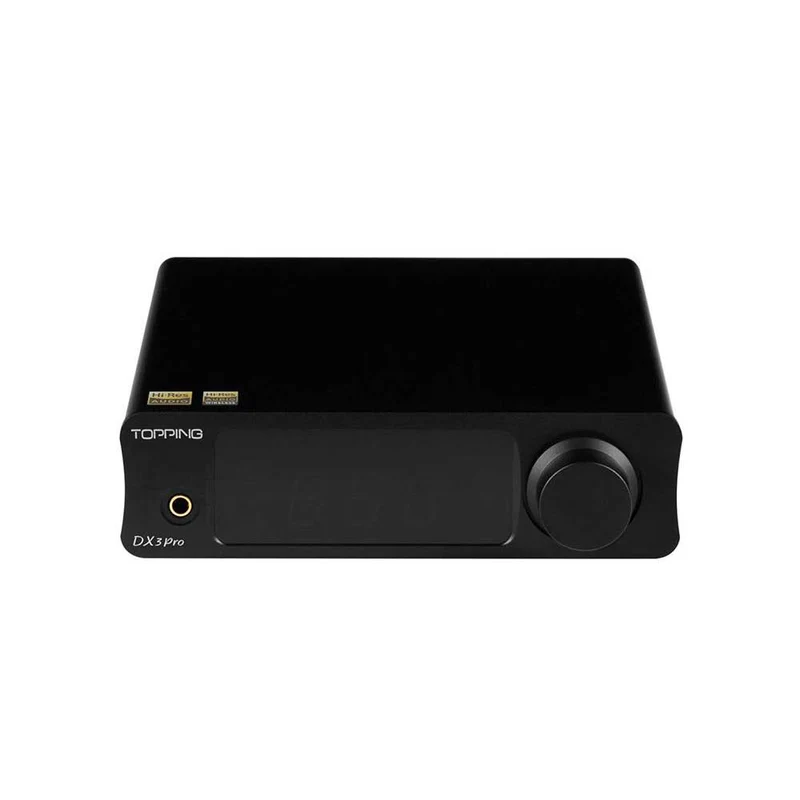

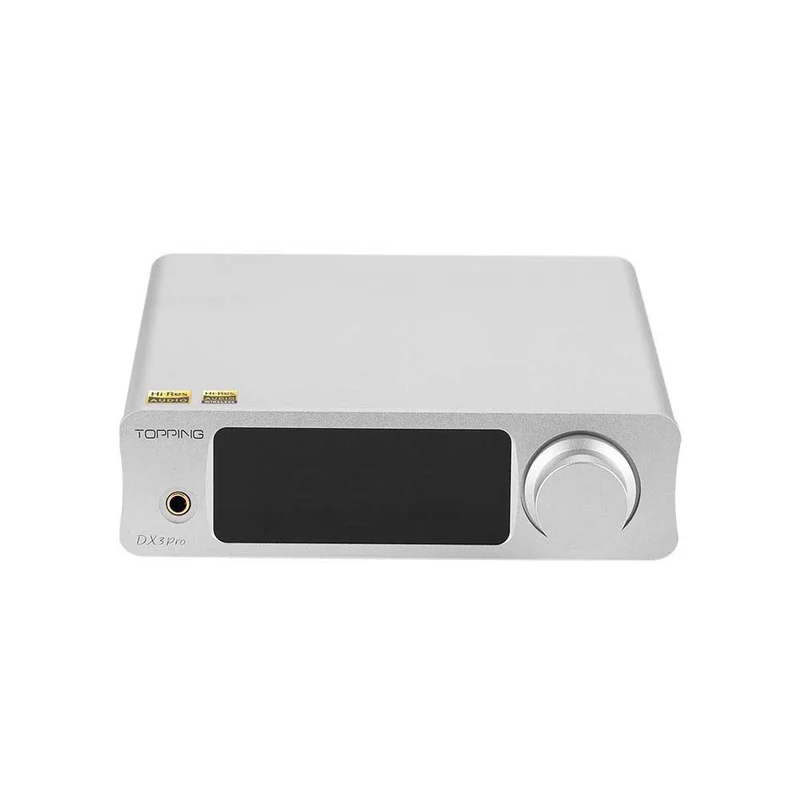

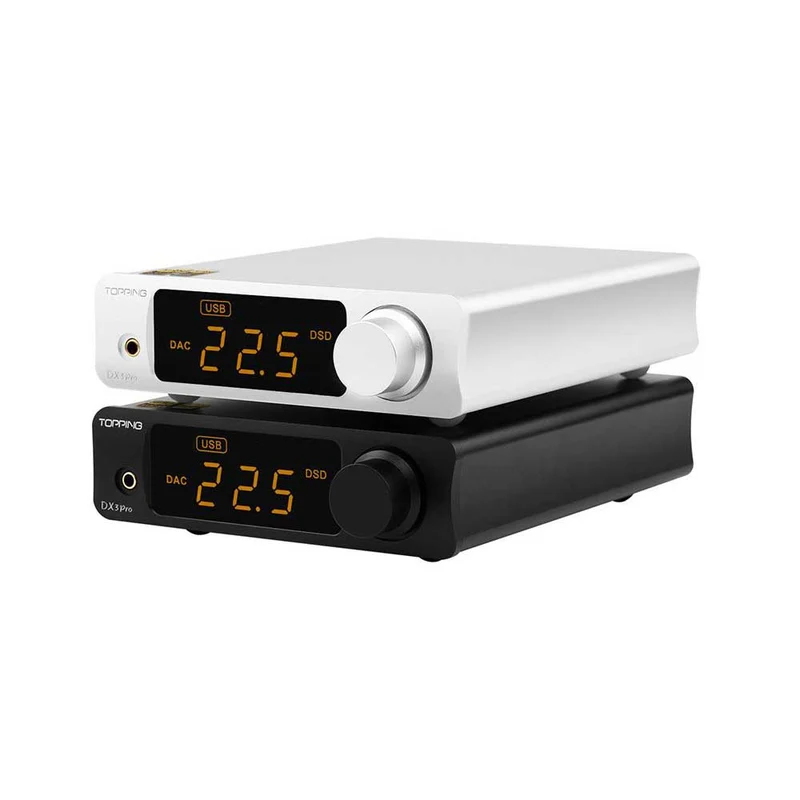

Topping DX3 Pro

________________________________________________________

Pre-order : get 10% discount with the code "FIRST"

(valid until 22/08 - pre-order closing on 23/08)

________________________________________________________

Specifications

Product type	DAC and Headphone amplifier
Inputs	1x USB-B (XMOS XU208) 1x Optical Toslink 2x S/PDIF Coaxial Bluetooth
Outputs	1x Stereo RCA Line Output 1x Jack 3.5mm Headphone Output

DAC Output, USB 96KHZ Input measurements

THD+N @ A-Weighting	< 0.0004% @ 1kHz < 0.0005% @ 20Hz-20kHz
SNR @ A-Weighting	> 120dB @ 1kHz
Frequency response	20Hz - 20kHz (+/-0.35dB)
Output level	2Vrms @ 0dBFS
Noise	< 2µVrms
Crosstalk	-135dB @ 1kHz
Channel balance	< 0.1dB
Output impedance	100Ω

Headphone Output, USB 96KHZ Input measurements

THD+N @ A-Weighting	< 0.001% @ 1kHz, Output = 77mW (32Ω) < 0.002% @ 20Hz - 20kHz, Output = 77mW (32Ω) < 0.0006% @ 1kHz, Output = 13.4mW (300Ω) < 0.0006% @ 20Hz - 20kHz, Output = 13.4mW (300Ω)
SNR @ A-Weighting	> 120dB @ 1kHz
Frequency response	20Hz - 20kHz (+/-0.2dB)
Output level	5.8Vpp @ G=0dB 17.3Vpp @ G=9dB
Noise	< 3µVrms @ G=0dB < 7µVrms @ G=9dB
Crosstalk	-70dB @ 1kHz
Channel balance	0.5dB
Output impedance	< 10Ω
Output power	700mW x 2 @ 32Ω, THD+N < 1% 125mW x 2 @ 300Ω, THD+N < 1%

General

Power	15VDC 1A (power supply included)
Case material	Aluminium

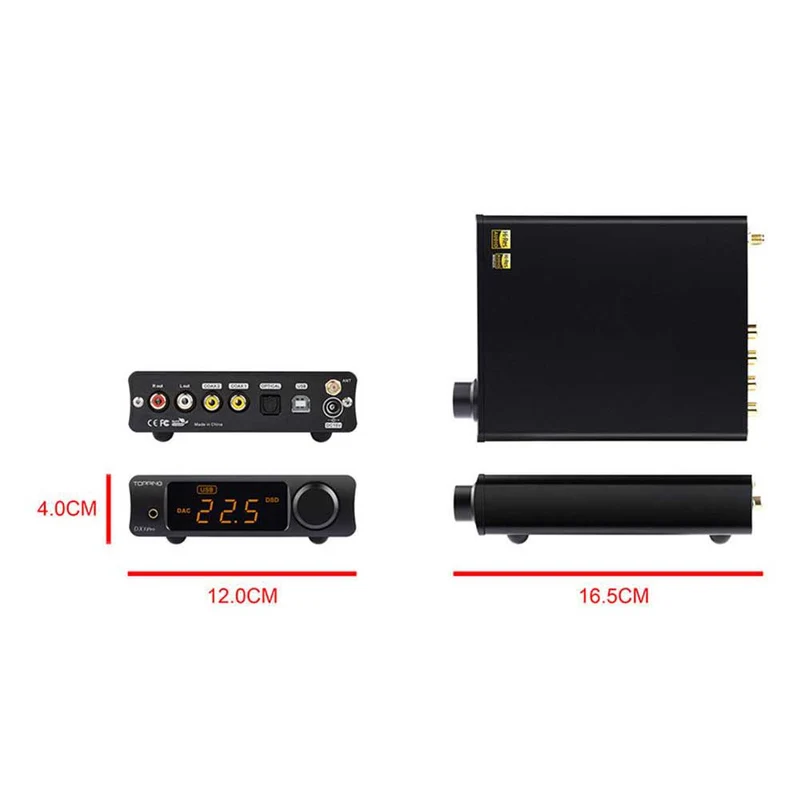

Dimensions	120 x 165 x 40mm
Weight	400g
Color	Black

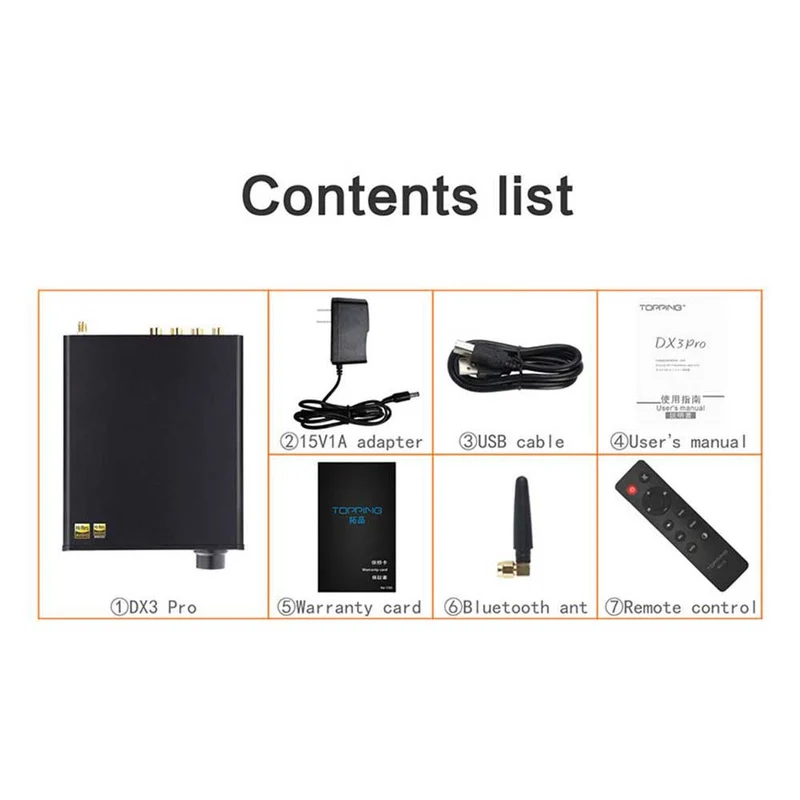

Package	1x Topping DX3 Pro V2 1x Bluetooth Antenna 1x Remote Control 1x USB Cable 1x Power supply
