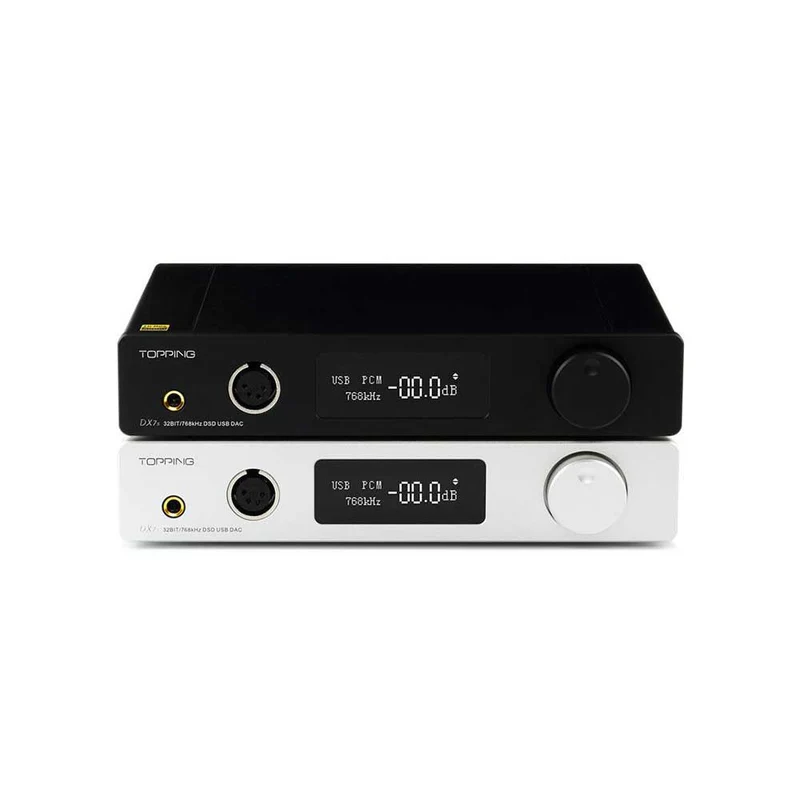

Topping DX7s
Détails du produit
________________________________________________________
Pre-order : get 10% discount with the code "FIRST"
(valid until 22/08 - pre-order closing on 23/08)
________________________________________________________
Specifications

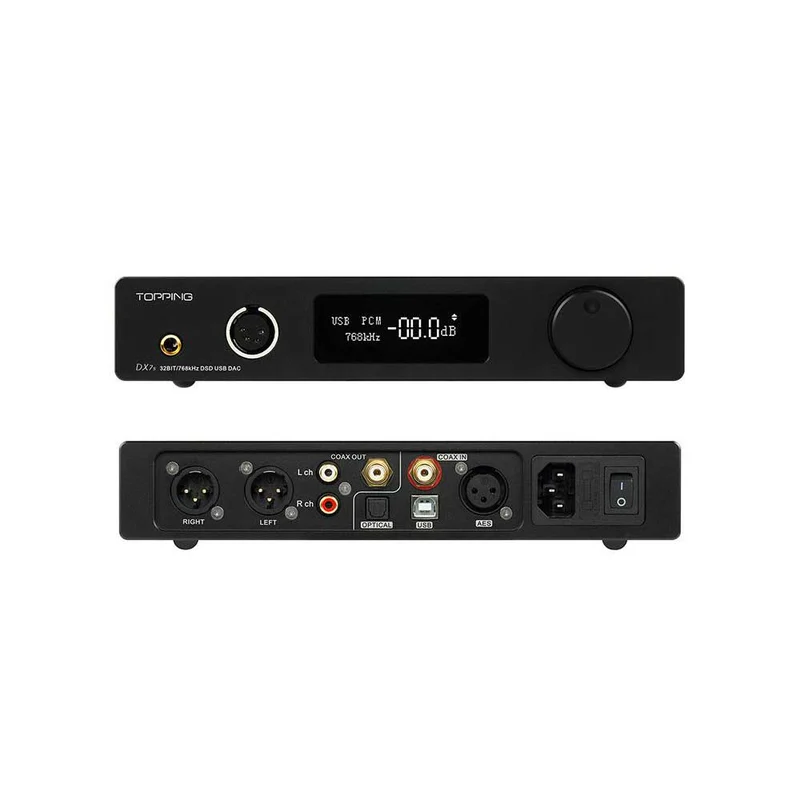

Connectors - Inputs
| 1x USB XMOS | 16 - 32bits DSD64 to DSD512 (DOP) 768kHz |
| 1x Coaxial | 75Ω 16 - 24bits 44.1kHz - 192kHz |
| 1x Toslink Optical | 16 - 24bits 44.1kHz - 192kHz |
| 1x AES/EBU | Balanced 110Ω 16 - 24bits 44.1kHz - 192kHz |
Connectors - Outputs
| 1x RCA | - |
| 1x XLR Symmetry | - |
| 1x Coaxial Digital | 75Ω 16 to 24 bits 44.1kHz to 192kHz |
| 1x Headphone Out | Jack 6.35mm |
| 1x balanced XLR headphone output | 4 pins |
Specifications
| Report signal noise | 114dB |
| Crosstalk | -130dB to 1kHz |
| Headphone output level 6.35 | 16Vpp |
| Balanced headphone output level | 31Vpp |
| Fixed | 2V RMS |
| Headphone output impedance | 10Ω (20Ω symmetrical) |
| Line output impedance DAC | 100Ω |
| Line output impedance XLR | 200Ω |
| Coaxial Input Sensitivity | 0.5V pp (75Ω) |
| Frequency Response | 20Hz - 20kHz (-0.2dB) |
Headphone Output Power
| Asymmetrical Jack 6.35mm | 690mW to 32Ω, 110mW to 300Ω (16 to 300Ω) |
| Symmetrical XLR 4 pins | 420mW to 300Ω, 210mW to 600Ω (16 to 600Ω) |
| Compatibility | Windows, Mac |
| Consumption | 12W |
| Weight | 1.95kg |

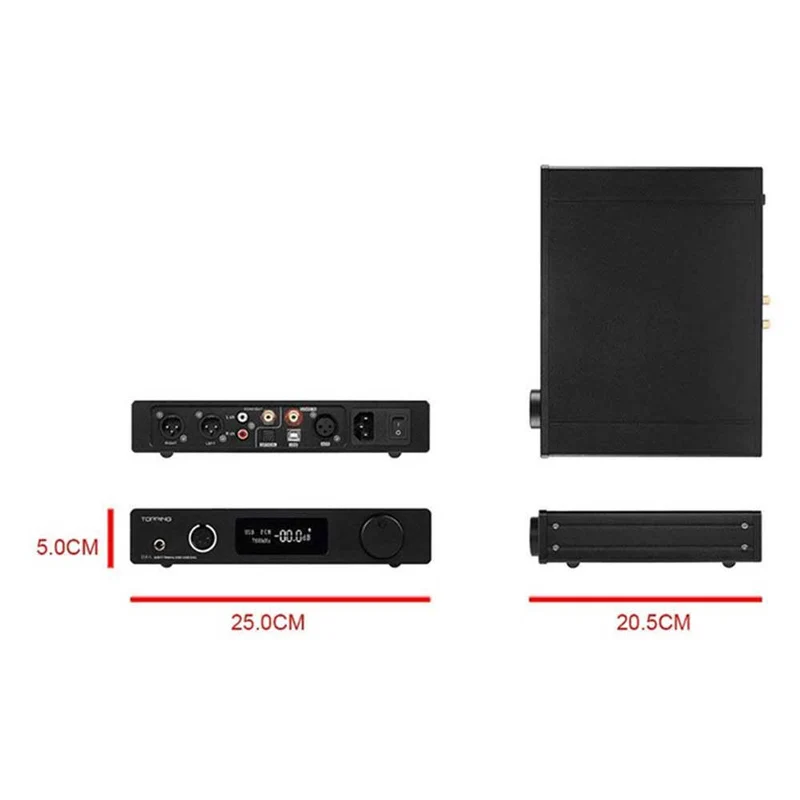

| Dimensions | 250 x 205 x 50mm |

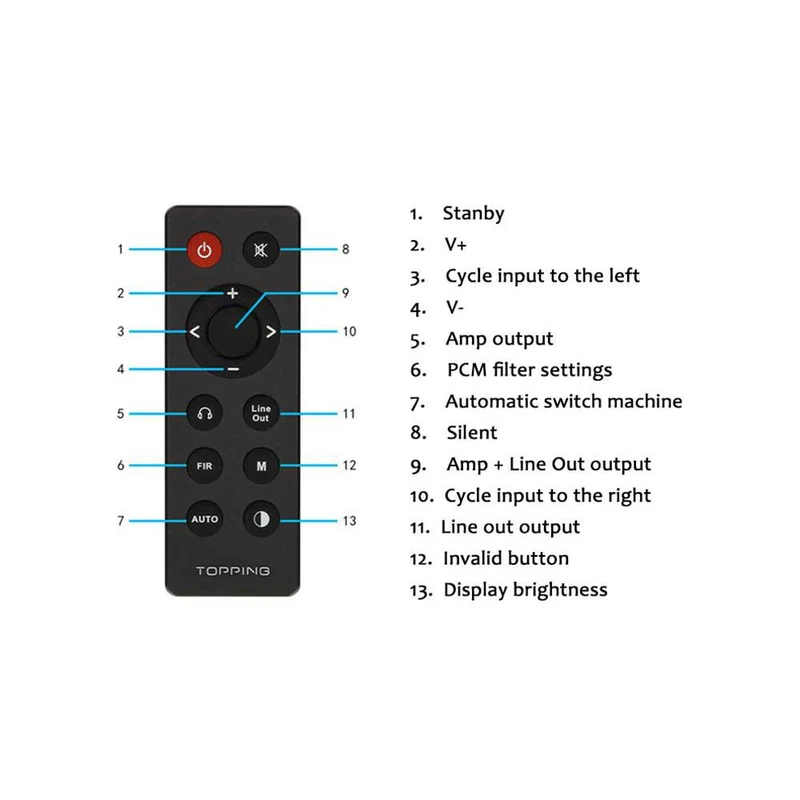

| Accessories | 3.5mm Jack, 1x USB Cable, 1x Power Cable / Remote control available as accessory |
