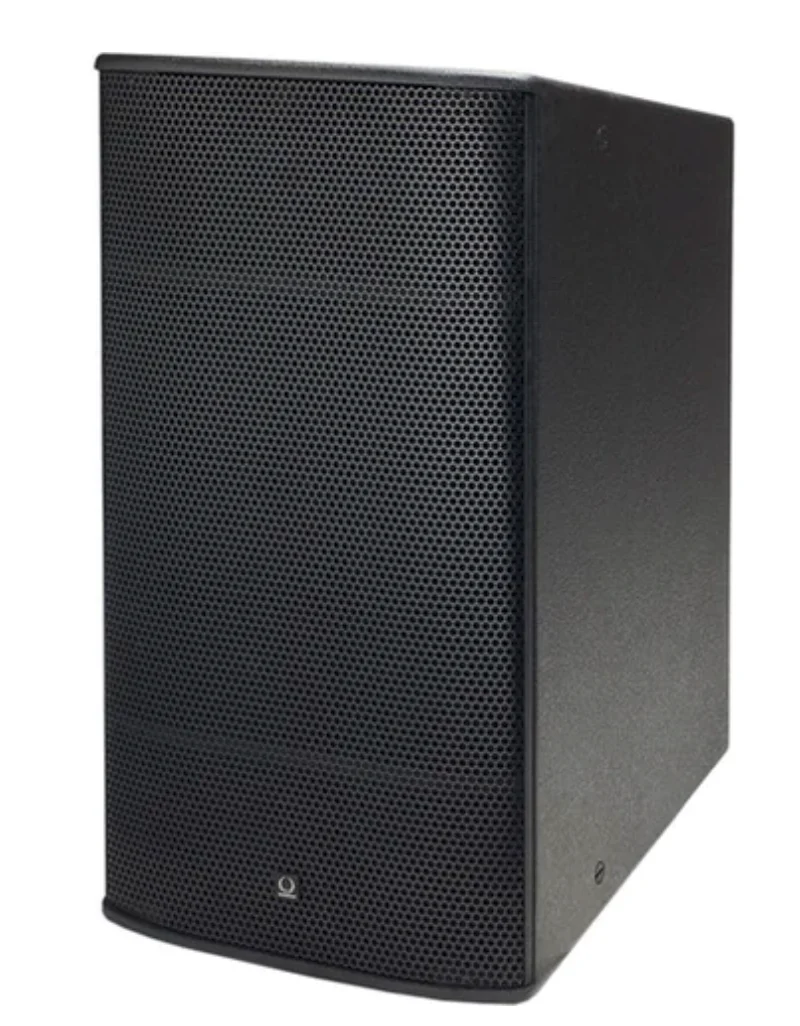

Turbosound TCS-B15A Front Loaded Passive Subwoofer - DEMO

Turbosound TCS-B15A, Turbosound Front-Loaded Low Frequency Loudspeaker

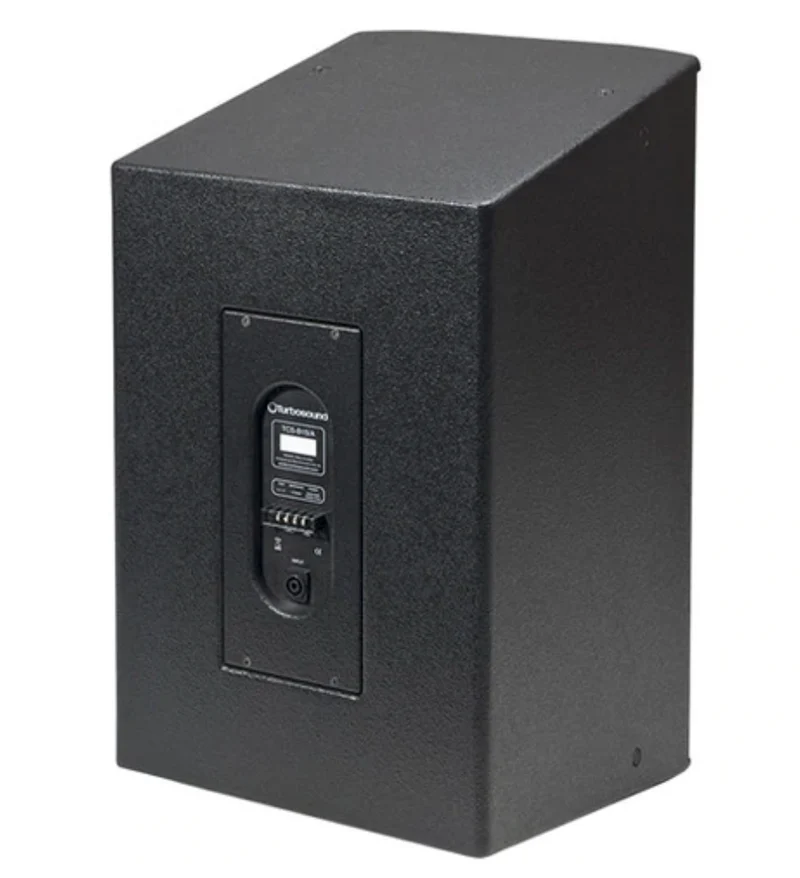

Turbosound TCS-B15A is a 15" Front Loaded Subwoofer feature its low frequency loudspeaker enclosure which is designed for use in a broad range of fixed installations. The Turbosound TCS-B15A consists of a 15" low frequency driver in a trapezoidal enclosure. The Turbosound TCS-B15A cabinet is dimensioned to tight pack cluster with TCS series mid/high enclosures equipped with a 12" low frequency driver. The Turbosound TCS-B15A cabinet is built from 5/8" (15 mm) birch plywood with a powder coated perforated steel mesh grille backed with reticulated foam, and is finished in black semi matt textured paint. There is also a multiple rigging points, supported by internal steel flying strips, are provided on the top, bottom, sides and rear of the cabinet to enable it to be suspended in permanent installations using M10 shoulder eyebolts. A Neutrik speakON NL4 connector is located on the rear panel wired in parallel with a 4-way barrier strip providing input and link through connections to additional TCS series cabinets. The Turbosound TCS-B15A also has a weather resistant version which is optionally available designed for outdoor use, with all components rated to IP54 and fitted with a captive cable tail secured through a sealed cable gland on an aluminum panel.

Turbosound TCS-B15A Main Features

• 15" low frequency driver
• Low distortion bass reflex port design
• 5/8" birch plywood enclosure with hard wearing semi matt paint finish
• Architecturally styled powder coated perforated steel mesh grille
• Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
• Multiple internal rigging points allow bracket mount and suspension in any orientation
• Neutrik speakON NL4 and barrier strip connectors

Specifications

Components	1 x 15" (381 mm) LF Driver 1 x 6.5" (165 mm) MF Driver 1 x 1" (25 mm) HF Driver
Frequency Response	50 Hz - 20 kHz ±3 dB 40 Hz - 20 kHz ±10 dB
Dispersion	70° H x 40° V @ -6 dB Points
Sensitivity (1 W @ 1 M)	HF: 108 dB, MF: 105 dB, LF: 97 dB; Bi-amp: MF/HF: 105 dB
Power Handling	HF:50 W Continuous, 200 W Peak; MF: 400 W Continuous, 1,600 W Peak; LF: 500 W Continuous, 2,000 W peak; Bi-amp MF/HF: 100 W Continuous, 400 W peak
Calculated Max SPL	HF: 125 dB Cont, 131 dB Peak; MF: 125 dB Cont, 131 dB Peak; LF: 124 dB Cont, 130 dB Peak; Bi-amp MF/HF: 128 dB Cont, 134 dB Peak; Addition: 130 dB Cont, 136 dB Peak
Nominal Impedance	HF: 16 O; MF: 16 O; LF: 8 O; Bi-amp MF/HF: 12 O
Crossover	Internal Passive Network at 5 kHz
Construction	15 mm (5/8") Birch Plywood Finished in Semi Matt Black Paint
Grille	Powder Coated Perforated Steel with Foam Backing
Connectors	2 x speakON* NL8, Wired Pin 1+, Pin 1-: Link Pin 2+: LF Positive, Pin 2-: LF Negative Pin 3+: MF Positive, Pin 3-: MF Negative (MF/HF passive) Pin 4+: HF Positive, pin 4-: HF Negative

Dimensions (H x W x D)	979 x 535 x 467 mm (38.5 x 21.1 x 18.4")
Net Weight	52 kg (114.4 lbs)
