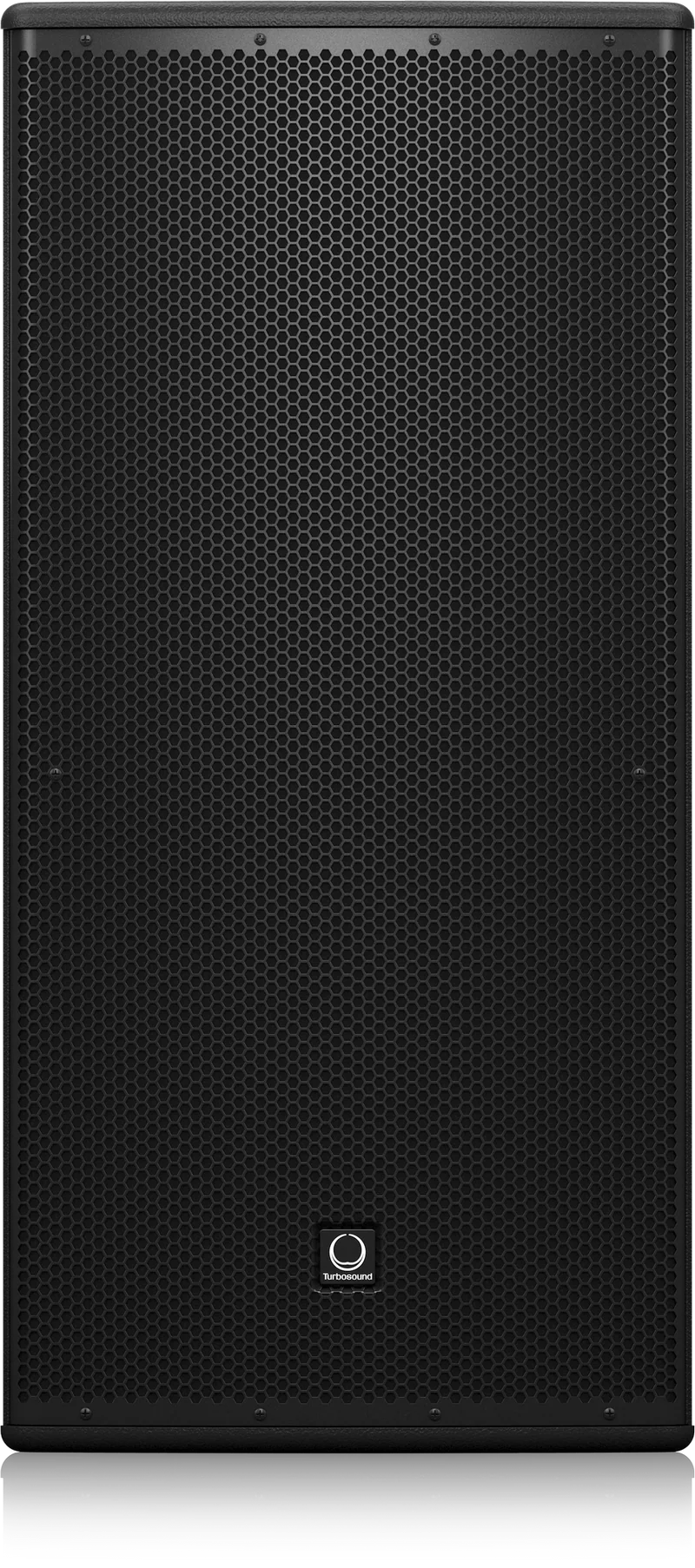

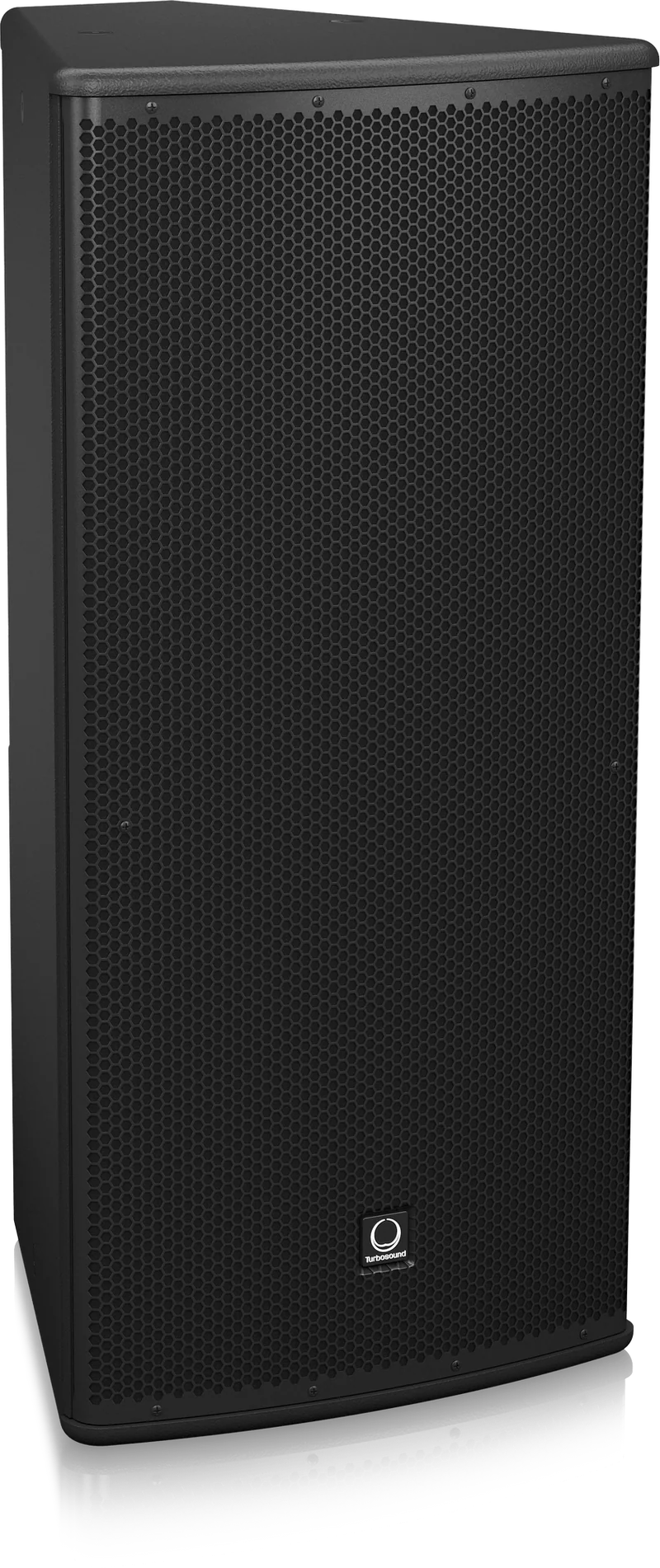

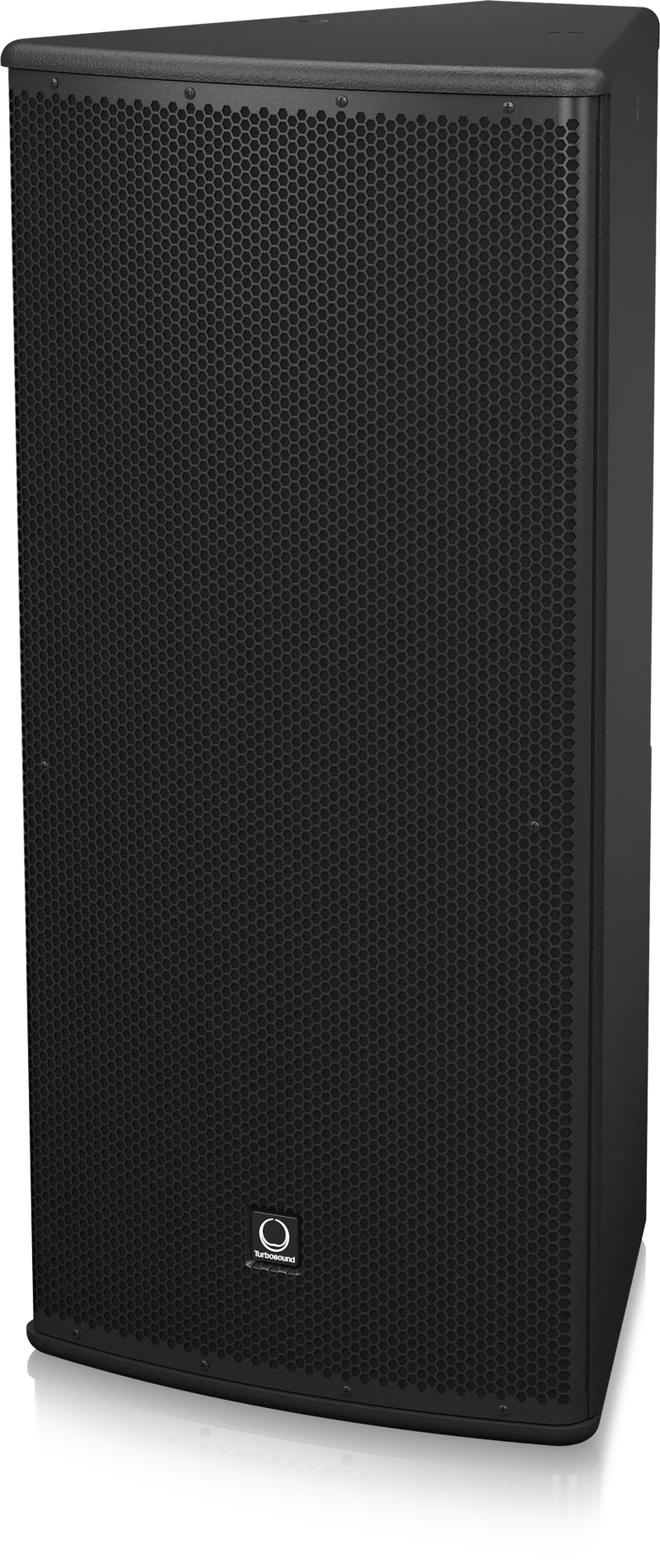

Turbosound TCS122/64-AN Arrayable 2500 Watt 2 Way 12" Loudspeaker with Dendritic Waveguide, Klark Teknik DSP Technology and ULTRANET Networking - DEMO

Product Features

• Arrayable 2 way full range loudspeaker for installation applications

• Rotatable Dendritic waveguide with 60º H x 40º V dispersion

• 2,500 Watt power featuring Klark Teknik Class-D technology

• Klark Teknik Digital Signal Processing for total system control

• ULTRANET digital audio networking connects to mixers and other sources

• Glass fibre loaded 12" low frequency driver with aluminium voice coil for improved transient response

• Titanium dome 1.4" neodymium motor compression driver

• Fully featured user interface with LCD display for ease of navigation

• PC remote control software downloadable at turbosound.com

• Multiple array configurations for extended coverage

• Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays

• Multiple internal rigging points allow bracket mount and suspension in any orientation

• 15 mm (5/8") birch plywood enclosure with hard wearing semi matt black paint finish

• Architecturally styled powder coated perforated steel mesh grille

• Mains input on Neutrik powerCON* connector

Specifications

Frequency response	50 Hz – 18 kHz ±3 dB 45 Hz – 20 kHz -10 dB
Nominal dispersion	60° H x 40° V @ -6 dB points, rotatable
Maximum SPL	131 dB peak
Crossover type	Active
Transducers	1 x 12" (312 mm) LF Driver 1 x 1.4" (36 mm) HF Compression Driver
Limiter	Independent HF, LF, peak and rms

Amplifier

Maximum output power*	2500 W
Type	Class-D
Protection	Short circuit, thermal

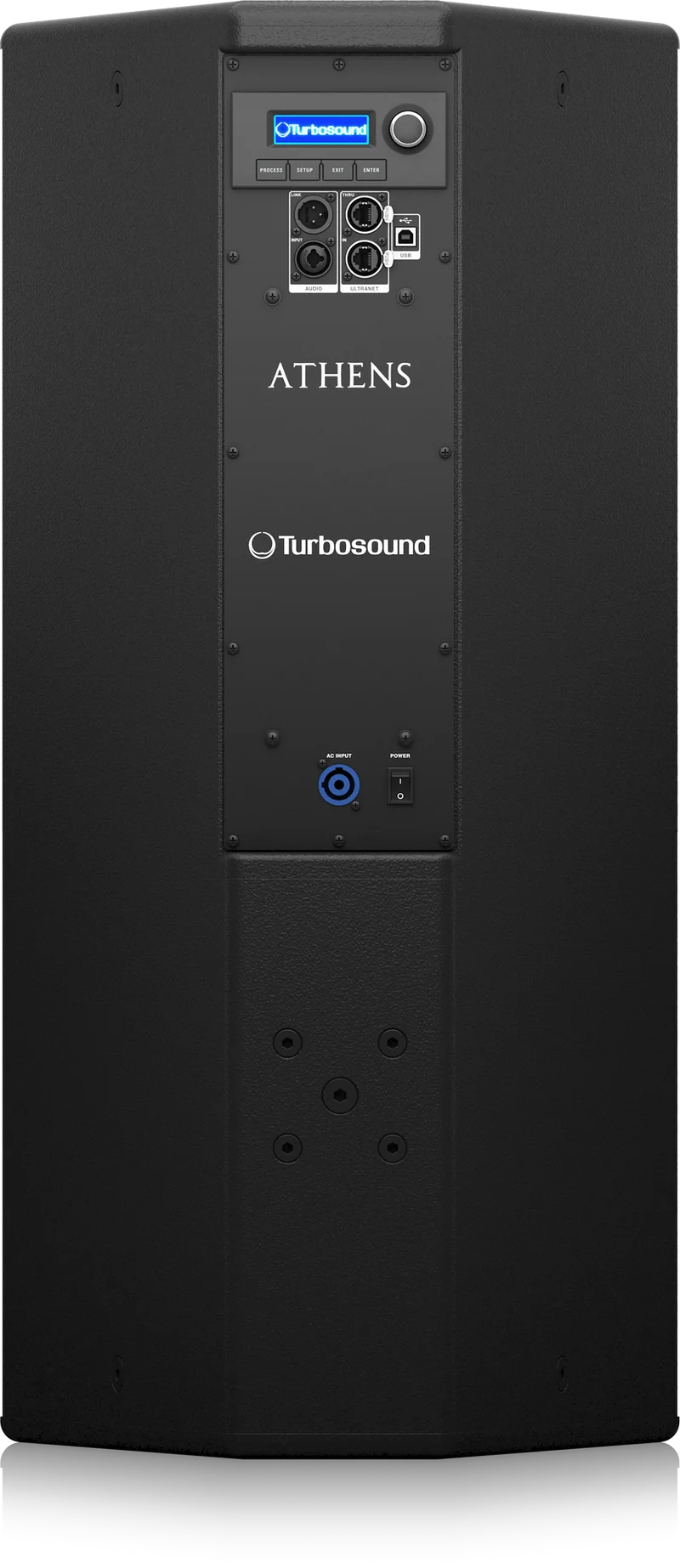

Connectors

Input/link	1 x Combo Jack/XLR, 1 x XLR
Ultranet input/link	2 x RJ45
Mains supply	Neutrik powerCON 20A†

Controls

DSP	Rotary push-encoder and level control Buttons for Process, Setup, Exit, Enter

User DSP Functions

Factory EQ presets	Positioning, Sound mode, FBQ
Display	LCD 128 x 32, blue, backlit
Delay	0 - 300 ms
Equalisation	High and low shelving EQ 2 x parametric EQ
Limiter	Zero attack input limiter
Presets	20 total presets, 19 user-definable
Crossover	High Pass L-R 24 dB/oct
Protection	Lock-out function for all settings

Power Supply

Power consumption	90 W @ 1/8 max power
Voltage (fuses)

Enclosure

Dimensions (H x W x D)	834 x 399.4 x 425 mm (32.8 x 15.7 x 16.7")
Grille	Powder Coated Perforated Steel
Flying hardware	M10 x 9, M8 X 8 Points
