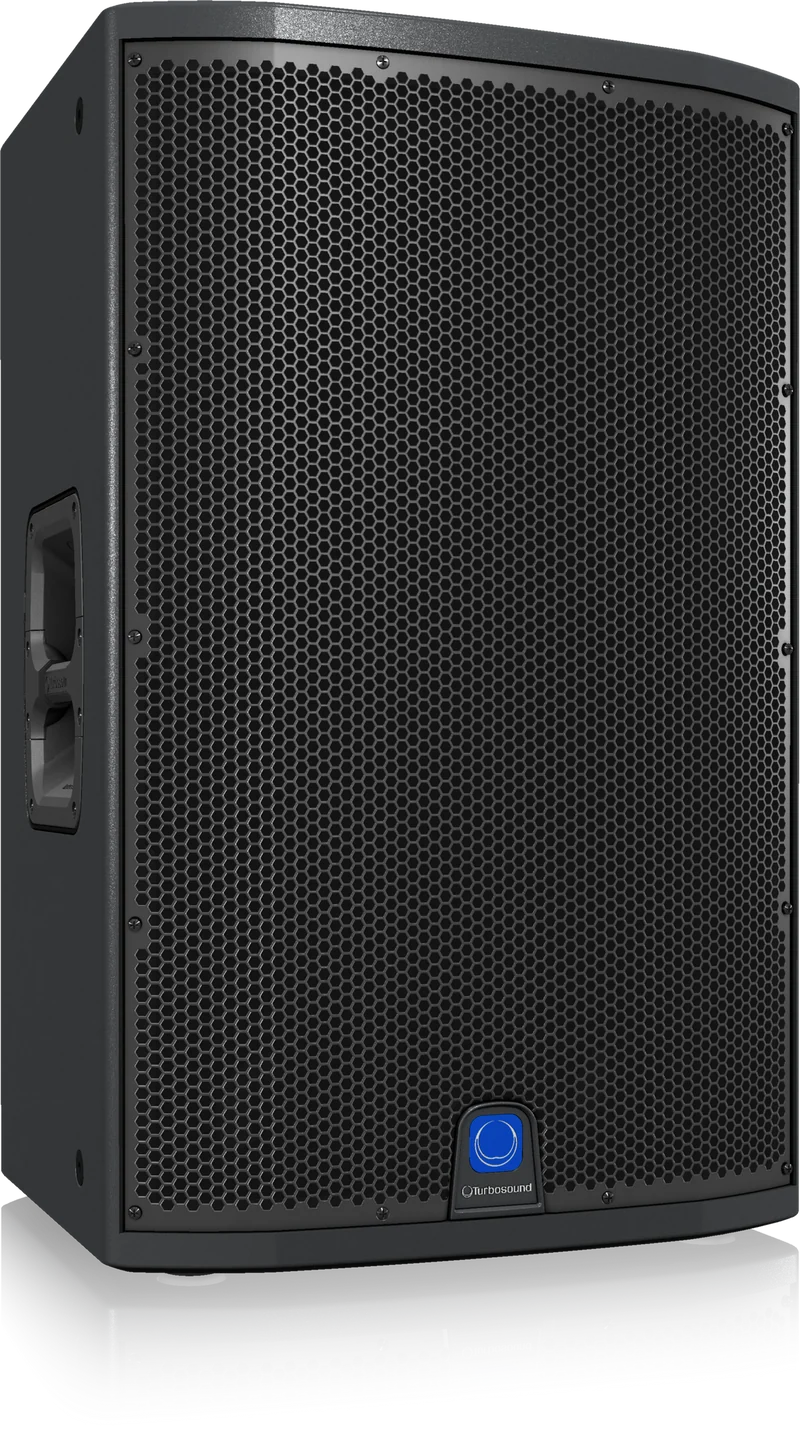

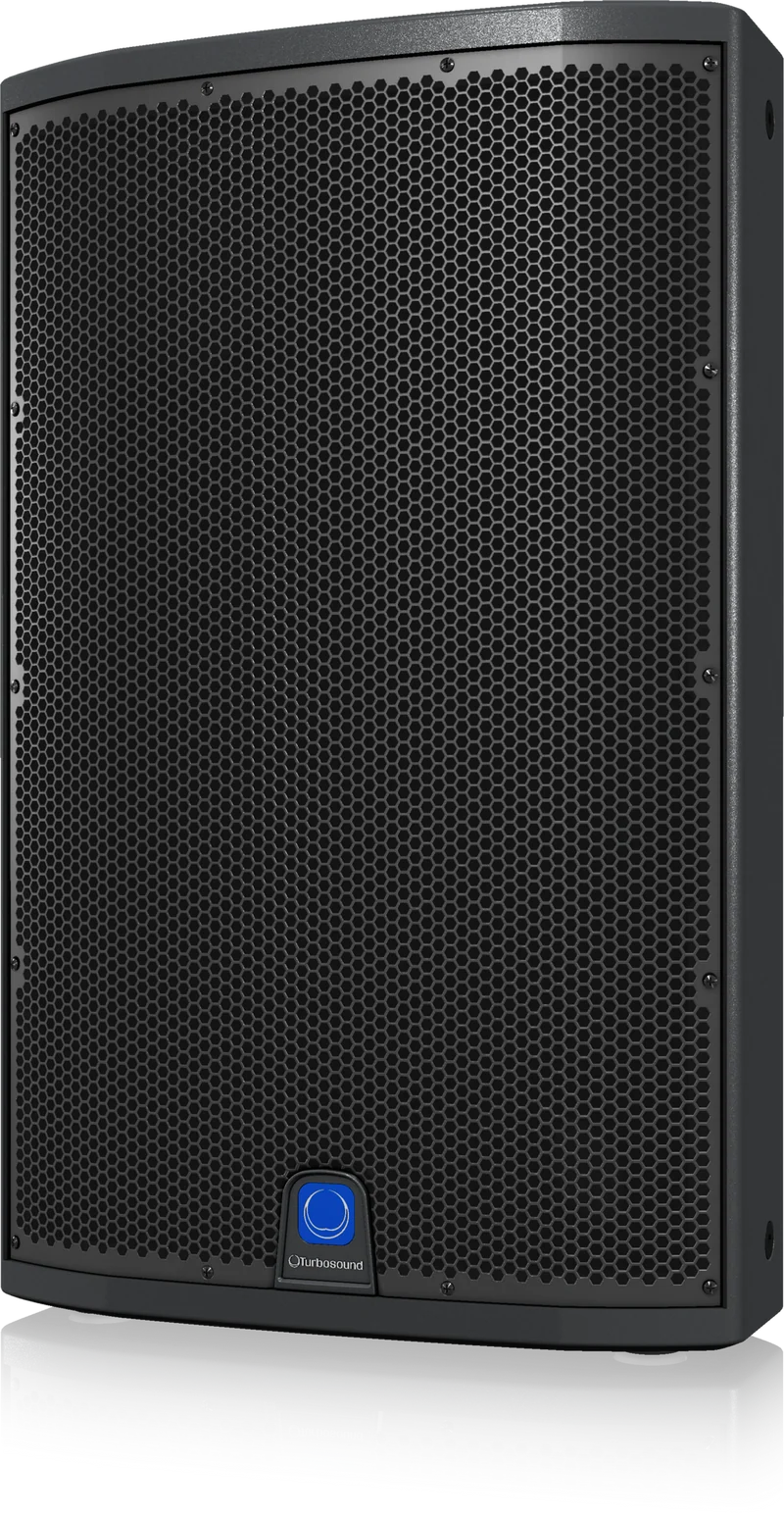

Turbosound TSP152-AN 2500 Watt 2 Way 15" Powered Loudspeaker with Klark Teknik DSP Technology and ULTRANET Networking - DEMO

Turbosound 's TSP152-AN 2500 Watt 2 Way 15" Powered Loudspeaker with Klark Teknik DSP Technology and ULTRANET Networking

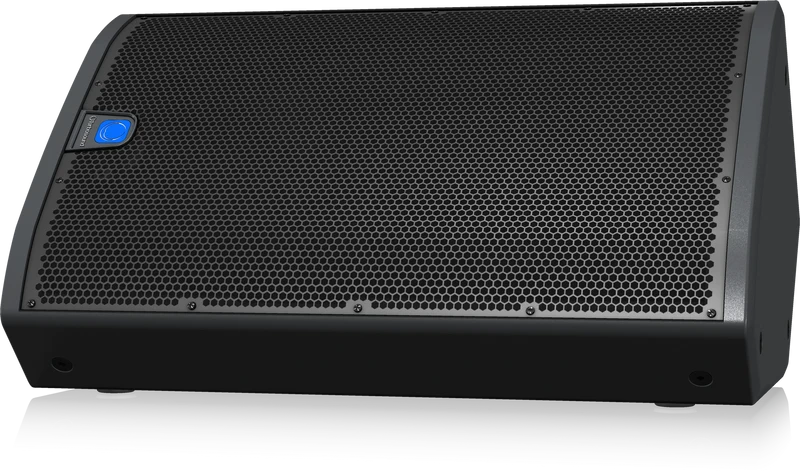

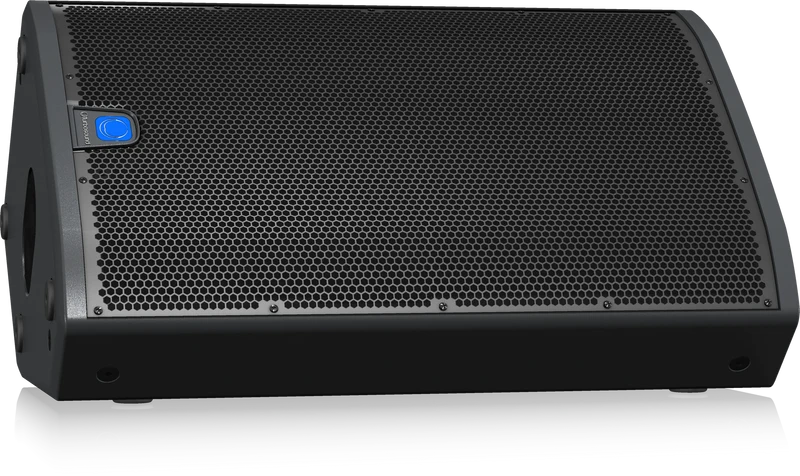

The 2-way full range TSP152-AN is a 2,500 Watt 15" powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the TSP152-AN provides optimal performance for FOH, side fill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications.

Product Features

• 2 way full range loudspeaker for portable PA applications

• 2,500 Watt power featuring Klark Teknik Class-D technology

• Klark Teknik Digital Signal Processing for total system control

• ULTRANET digital audio networking connects to mixers and other sources

• 15" low frequency driver with inside/outside wound coil for high power handling

• Titanium dome 1" compression driver with extended high frequency reproduction

• Fully featured user interface with LCD display for ease of navigation

• PC remote control software downloadable at turbosound.com

• Low distortion waveguide provides 70? H x 50? V dispersion

• 18 mm (3/4") birch plywood enclosure, finished in a black semi-matt textured paint

• Rugged powder coated perforated steel mesh grille

• Dual angle pole mount for accurate coverage control

• Multiple internal rigging points for install applications

• Mains input on Neutrik powerCON* connectors

• Designed and engineered in the U.K.

  SPECIFICATIONS

  System

  Frequency response	41 Hz – 18 kHz ±3 dB 35 Hz – 20 kHz -10 dB
  Nominal dispersion	70° H x 50° V @ -6 dB Points
  Maximum SPL	133 dB peak
  Crossover type	Active
  Transducers	1 x 15" (394 mm) LF driver 1 x 1" (25.4 mm) HF compression driver
  Limiter	Independent HF, LF, peak and rms

  Amplifier

  Maximum output power*	2500 W
  Type	Class-D
  Protection	Short circuit, thermal

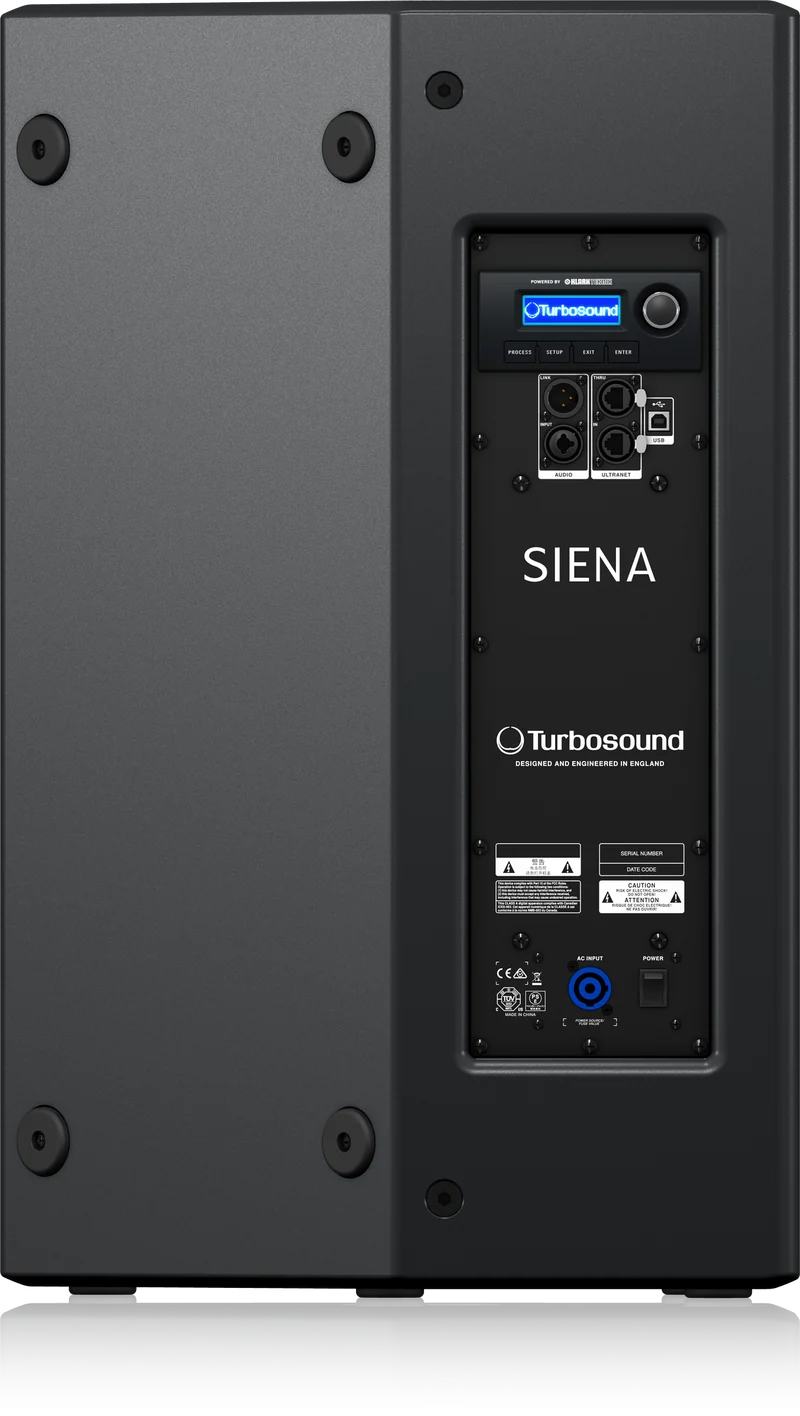

  Connectors

  Input/link	1 x Combo Jack/XLR, 1 x XLR
  Ultranet input/link	2 x RJ45
  Mains Supply	Neutrik powerCON 20A†

  Controls

  DSP	Rotary push-encoder and level control Buttons for process, setup, exit, enter

  User DSP Functions

  Factory EQ presets	Positioning, Sound mode FBQ
  Display	LCD 128 x 32, blue, backlit
  Delay	0 - 300 ms
  Equalisation	High and low shelving EQ 2 x parametric EQ
  Limiter	Zero attack input limiter
  Presets	20 total presets, 19 user-definable
  Crossover	High Pass L-R 24 dB/oct
  Protection	Lock-out function for all settings

  Ultranet Digital Network

  Digital processing
  System
  Cabling

  Power Supply

  Power consumption	90 W @ 1/8 max power
  Voltage (fuses)

  Enclosure

  Dimensions HWD	717 x 443 x 360 mm (28.2 x 17.4 x 14.2")
  Net weight	27 kg (61.2 lbs)
  Construction	18 mm (¾") birch plywood
  Finish	Semi matt black paint
  Grille	Powder coated perforated steel
  Flying hardware	M10 x 6 points
